100% original Boscam 5.8Ghz 200mW 8 Channel FPV Audio Video Transmitter&Receiver TS351+RC305 For RC Car MultiCopter 2Km Range

Post on 2015-11-25 / Last Updated: 2016-08-19 / All Parts Accessories Listing / Best prices for Parts Accessories / Parts Accessories Best-Selling

100% Original  Boscam 5.8Ghz 200mW 8 Channel FPV Audio Video

Specification of 100% original Boscam 5.8Ghz 200mW 8 Channel FPV Audio Video Transmitter&Receiver TS351+RC305 For RC Car MultiCopter 2Km Range

Use : Vehicles & Remote Control Toys
For Vehicle Type : Airplanes
Brand Name : Boscam
Tool Supplies : Battery
Material : Metal
RC Parts & Accs : Antennas
Model Number : TS5823+RC305
RC Parts & Accs: : Radio Systems
Output Power: : 200mW
Frequncy: : 5.8GHz
Channel Amount: : 8 channels
is_customized : Yes
Min. Qty. 1/lot.
Evaluate Score : 4.9/5

Check Latest Price

--- Last Updated: 2016-08-19

--- Product prices and availability are accurate as of the date/time indicated and are subject to change.

--- Any price and availability information displayed on AliExpress.com at the time of purchase will apply to the purchase of this product.

--- Date/Timezone : Asia/Shanghai

Pictures and more details of 100% original Boscam 5.8Ghz 200mW 8 Channel FPV Audio Video Transmitter&Receiver TS351+RC305 For RC Car MultiCopter 2Km Range

5.8Ghz 200mW 32 Channel FPV Audio Video Transmitter/Receiver TX/RX2Km Range For DJI Phantom 2Km Range
Fig. Image for content

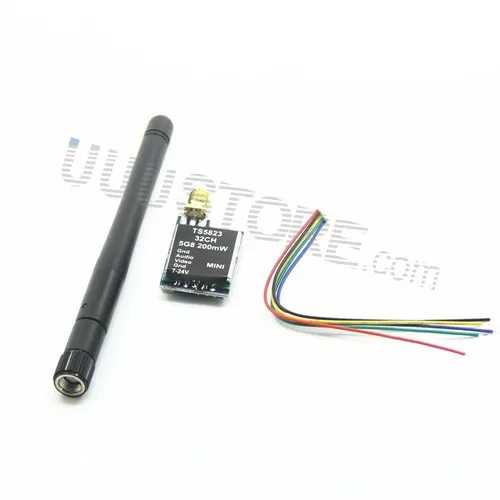

5.8Ghz 200mW Minitransmitter(TS5823)Specifications:

The TS5823 transmitter packs 200mW of ultra clean 5.8GHz power in a micro sized video/audio transmitter! A must have for those looking to save size and weight while still getting good performance. The TS5823 is transmitting a full range of 32 channels and only weighs 10g. It’s perfect for a wide range of aircraft, especially small models and 350 size multi-rotors such as Quanum Nova, DJI Phantom, QR X350 and more!

Specification:

Modulate:Wideband FM Modulate
Video Format:NTSC/PAL
Output Impedance:50 Ohm
Output Power:23~24dBm
Channel:32CH
Operating Voltage:7V~24V
Supply Current:190mA
Operating Temperature:-10~85 Video Band Width : 0~8.0 MHz
Audio Carrier Frequency:6.5MHz
Video Input Level:0.8~1.2 Vp-p
Video Input Impedance:75 Ohm
Audio Input Level:0.5~2.0 Vp-p
Audio Input Impedance:10K Ohm
Connector:RP-SMA
Dimension:40mm x 23mm x 8mm
Weight:7g (without antenna)

Frequency range:

FR1 5865,5845,5825,5805,5785,5765,5745,5725
FR2 5733,5752,5771,5790,5809,5828,5847,5866
FR3 5707,5685,5665,5645,5885,5905,5925,5945
FR4 5740,5760,5780,5800,5820,5840,5860,5880
Fig. Image for content

RC305ReceiverSpecifications:

Includes an additional AV output for video recording while usingFPVgoggles.

Features:
Channels:8
Receiver operating voltage:12VDC
Operating temp:-10~85C
Video bandwidth:0~8.0MHz
Audio frequency:6.5MHz
Video input level:0.8~1.2Vp-p
Video input impedance:75Ohm
Audio input level:0.5~2.0Vp-p
Audio input impedance:10K/Ohm
Weight:43g
Antenna connector:RP-SMA
Dimensions:61x52x13mm

Channels
5.8G :
5705,5865,5665,5645,5885,5905,5925,5945MHZ

Fig. Image for contentFig. Image for contentFig. Image for contentFig. Image for contentFig. Image for content

** Many fake, poor quality & untestedFPVproducts are currently entering the market. Don’t get caught out with poor quality substitutes, BoscamFPVequipment is tried and true and has been tested and developed byFPVpilots forFPVpilots.

Fig. Image for content

1x 5.8GHz 200mw Transmitter(TS5823)
1x 5.8GHz Receiver(RC305)
1x TX power cable and AV cable set
1x RX power cable and AV cable set
2x2dBi 5.8GHz omni-direction antenna
1x EnglishManual

Fig. Image for content

1. We can accept T/T , Western Union and Money Order,the best way is direct online payment,you can choose yourself. If you want other payment terms please let us konw before when you order.
2. Full payment must be made within 7 days after placing your order, or the order will be invalid or canceled by the system.
3. e surMake that you have completed all the detailed information like contact person,address,post code and telephone number when filling in your buyer's information.
4.We will send the goods within 3 business days after the full payment has been confirmed. If the payment is not available, your order will be closed automatically.
5.The buyer are responsible for any insurance ,problems and damage which caused by shipping service such accidents, delays or other issues. Besides the buyer should to be responsible for any tax and/or duty charged by their country. And the goods will be Marked as "gift" or "sample" for your easy customs clearance and less charge. (if you want to declare the goods as other item name, or specify an value for custom, please inform us when making the order)

Fig. Image for content

1. All the goods are inspected before shipment, so if you are not satisfied with the purchase, you can exchange the items in one week and you must contact us within 24 hours of the receipt of your purchase
2. The shipping and handling charge is not refundable and customer should be responsible for all the charges of returning and reshipping.
3. All return items must be in its original conditions, including box and accessories. Men made defects are not guaranteed, such as broken, scratched and so on.
4. For any items,please send by EMS or your local post when send back.

Fig. Image for content

1.Buyer's early confirmation will be highly appreciated after receiving the items.
2.Since your feedback is very important to our business's development, we sincerely invite you to leave positive feedback for us if you are satisfied with our product and service. It'll just take you 1 minute,but this 1 minute has the extremely vital significance to us.
3.Please contact us before leaving any negative or neutral feedback. We will work with you to solve any problems.Thank you for your understanding!

Fig. Image for content

We are an honest seller on Aliexpress. All our items come from China with high quality.
If you have any problems, we are very glad if you can contact us.We will try our best to help you.Hope have a good cooperation with you for a long time.
