2015 New,5.8Ghz 5.8G 600mW Wireless Transmitter TS5828 + Receiver RC832 FPV RC Audio Video DJI Phantom Gopro hero3 hero4 SJ4000

Post on 2015-07-07 / Last Updated: 2016-08-21 / All Parts Accessories Listing / Best prices for Parts Accessories / Parts Accessories Best-Selling

2015 New,5.8Ghz 5.8G 600mW Wireless Transmitter TS5828 + Receiver RC832 FPV RC

Specification of 2015 New,5.8Ghz 5.8G 600mW Wireless Transmitter TS5828 + Receiver RC832 FPV RC Audio Video DJI Phantom Gopro hero3 hero4 SJ4000

Use : Vehicles & Remote Control Toys
Brand Name : uuustore
Tool Supplies : Assembly Category
Material : Metal
RC Parts & Accs : Radio Systems
Model Number : TS5828+RC832
Four-wheel Drive Attributes : Assemblage
Min. Qty. 1/lot.
Evaluate Score : 4.7/5

Check Latest Price

--- Last Updated: 2016-08-21

--- Product prices and availability are accurate as of the date/time indicated and are subject to change.

--- Any price and availability information displayed on AliExpress.com at the time of purchase will apply to the purchase of this product.

--- Date/Timezone : Asia/Shanghai

Pictures and more details of 2015 New,5.8Ghz 5.8G 600mW Wireless Transmitter TS5828 + Receiver RC832 FPV RC Audio Video DJI Phantom Gopro hero3 hero4 SJ4000

5.8Ghz 5.8G 600mW Wireless Transmitter TS5828 + Receiver RC832 FPV RC Audio Video DJI Phantom Gopro hero3 hero4 SJ4000

Fig. Image for content

The TS5828Transmitter packs a whopping 600mW of ultra clean 5.8GHz power! A must for those looking for longer range and locked in video. The TS5828 is transmitting a full range of 32 channels and uses an easy to use 2 button interface, it also comes with a clean pre-wired harness, and only weighs in at a scant 7grams, it’s Perfect for a wide range of aircraft!


The RC832 Receiver is nice and small in size for easy integration into your ground station, but big in quality and features. The receiver uses the same two button interface as the TS832 Transmitter making channel swapping a breeze. There are two independent AV outputs for both audio and video. So you can use a monitor and set of goggles or maybe a DVR to record your flight, for when your significant other asks where you were for the last 4 hours. Powering the receiver at the field is as easy as plugging in a 3 cell lipoly into the included prewired cable with mini JST. It just doesn’t get any simpler than this.


*For best range and video link stability we recommend using the Boscam 5.8GHz Cloud Spirit circular-polarized Antenna Set (SMA-RP) available below in the accessory’s tab

Features:
• 32 channels: Cover A, B, E bands and F bands
• Two switching buttons for the band and channel
• Two digits display for the band and channel
• Power off memory for last channel and band

Specs:
Video format supported: NTSC/PAL
Antenna connection: RP-SMA, jack (module side, both TX and RX)
Transmitter TX TS5828specs:
Power input:7-12V (3S Lipoly suggested)
Transmitting power: 600mW
Antenna gain: 2dbm
Working current: 310mA at 12V
Video bandwidth: 8Mhz
Audio bandwidth : 6.5Mhz
Weight: 7g
Dimension: 23x25x7.7mm(excluding antenna)
Receiver RX RC832 specs:
Power input: 12V
Working current: 200mA max
Antenna impedance: 50Ω
Antenna gain: 2db
Rx sensitivity -90dBm
Video impedance: 75Ω
Video format: NTSC/PAL auto
Dimension: 80x 65 x15mm
Weight: 85g

Frequency range:
FR1 5865,5845,5825,5805,5785,5765,5745,5725
FR2 5733,5752,5771,5790,5809,5828,5847,5866
FR3 5707,5685,5665,5645,5885,5905,5925,5945
FR4 5740,5760,5780,5800,5820,5840,5860,5880

Fig. Image for contentFig. Image for content

Fig. Image for content

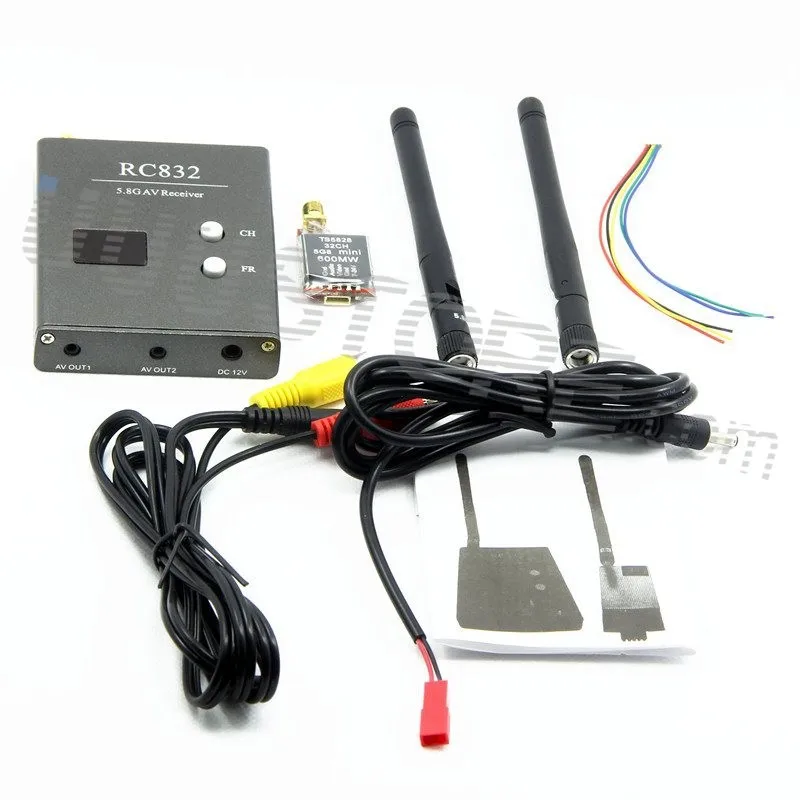

1 x TS5828 transmitter
1 x RC832 receiver
2 x 5.8G 5DB antenna
3 x cable
Fig. Image for content

Fig. Image for content
