2015 New,FPV 5.8GHz 600mW 32 Channels Mini Wireless A/V Transmitting (TX) Module TS5828 RP-SMA for 5.8g receiver DJI gopro

Post on 2015-07-07 /  Last Updated: 2017-03-25 /  All Parts Accessories Listing /  Best prices for Parts Accessories /  Parts Accessories Best-Selling

2015 New,FPV 5.8GHz 600mW 32 Channels  Mini Wireless A/V Transmitting (TX)

Specification of 2015 New,FPV 5.8GHz 600mW 32 Channels Mini Wireless A/V Transmitting (TX) Module TS5828 RP-SMA for 5.8g receiver DJI gopro

Use : Vehicles & Remote Control Toys
Tool Supplies : Assembly Category
Material : Metal
RC Parts & Accs : Radio Systems
Model Number : TS5828
Four-wheel Drive Attributes : Assemblage
Brand Name : None
Brand Name : uuustore
Min. Qty. 1/lot.
Evaluate Score : 4.8/5
Promotion End : 2017-04-23

Buy Now $8.90

--- Last Updated: 2017-03-25

--- Product prices and availability are accurate as of the date/time indicated and are subject to change.

--- Any price and availability information displayed on AliExpress.com at the time of purchase will apply to the purchase of this product.

--- Date/Timezone : Asia/Shanghai

Pictures and more details of 2015 New,FPV 5.8GHz 600mW 32 Channels Mini Wireless A/V Transmitting (TX) Module TS5828 RP-SMA for 5.8g receiver DJI gopro

Boscam TS5828 FPV 5.8GHz 600mW 32 Channels Mini Wireless A/V transmitter for qav250 DJI phantom gopro sj4000

The TS5828 Transmitter packs a whopping 600mW of ultra clean 5.8GHz power! A must for those looking for longer range and locked in video. The TS5828 is transmitting a full range of 32 channels and uses an easy to use 2 button interface, it also comes with a clean pre-wired harness, and only weighs in at a scant 7grams, it’s Perfect for a wide range of aircraft!


*For best range and video link stability we recommend using the Boscam 5.8GHz Cloud Spirit circular-polarized Antenna Set (SMA-RP) available below in the accessory’s tab

Features:
• 32 channels: Cover A, B, E bands and F bands
• Two switching buttons for the band and channel
• Two digits display for  the band and channel
• Power off memory for last channel and band

Specs:
Video format supported: NTSC/PAL
Antenna connection: RP-SMA, jack
Power input: 7-24V (3S Lipoly suggested)
Transmitting power: 600mW
Antenna gain: 2dbm
Working current: 310mA at 12V
Video bandwidth: 8Mhz
Audio bandwidth : 6.5Mhz
Weight: 7g(without antenna)
Dimension: 23x 25x 7.7mm(excluding antenna)

Frequency range:
FR1 5865,5845,5825,5805,5785,5765,5745,5725
FR2 5733,5752,5771,5790,5809,5828,5847,5866
FR3 5707,5685,5665,5645,5885,5905,5925,5945
FR4 5740,5760,5780,5800,5820,5840,5860,5880

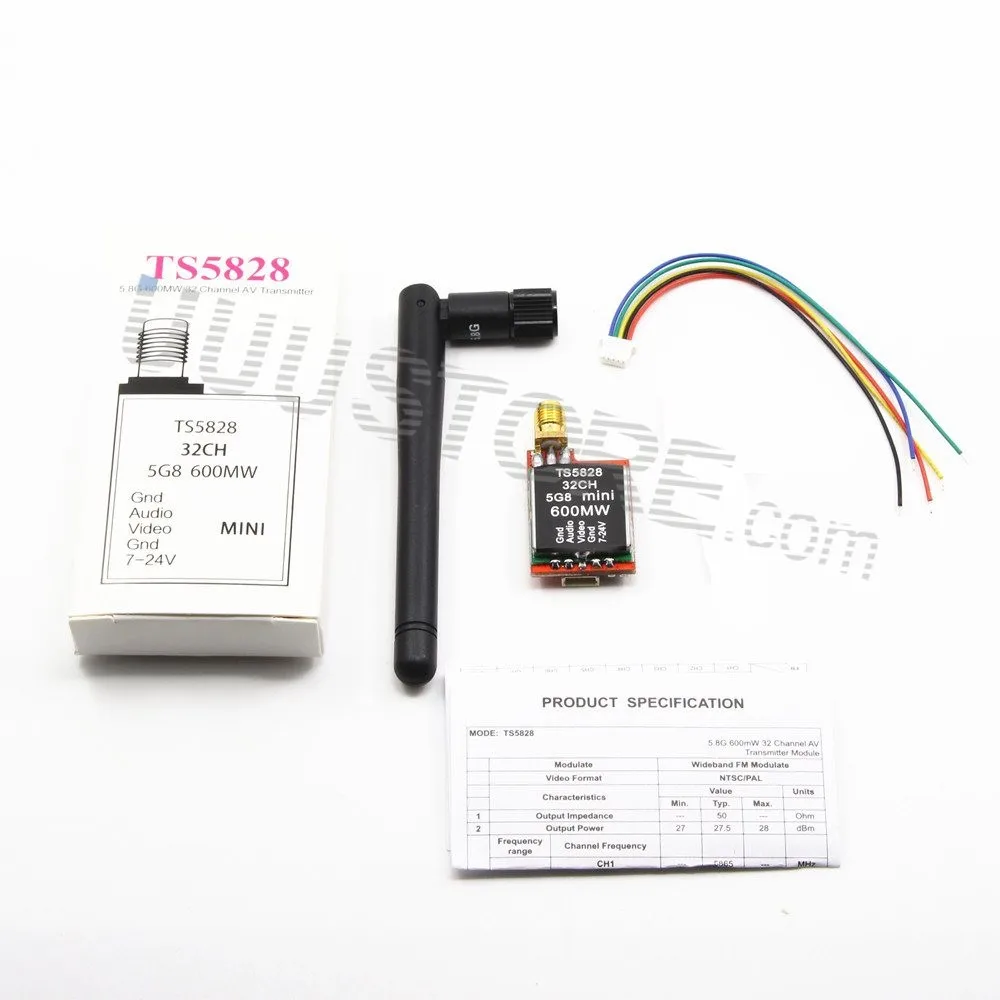

1 x TS5828 transmitter
1 x antenna(2db)
1 x power and av cable
1 x TS5828 box
1 x English User Manual
You can select to add gopro av cable or sj4000 av cable,so that you can use your camera.


1. We can accept T/T , Western Union and Money Order,the best way is direct online payment,you can choose yourself. If you want other payment terms please let us konw before when you order.
2. Full payment must be made within 7 days after placing your order, or the order will be invalid or canceled by the system.
3. e surMake that you have completed all the detailed information like contact person,address,post code and telephone number when filling in your buyer\'s information.
4.We will send the goods within 3 business days after the full payment has been confirmed. If the payment is not available, your order will be closed automatically.
5.The buyer are responsible for any insurance ,problems and damage which caused by shipping service such accidents, delays or other issues. Besides the buyer should to be responsible for any tax and/or duty charged by their country. And the goods will be Marked as "gift" or "sample" for your easy customs clearance and less charge. (if you want to declare the goods as other item name, or specify an value for custom, please inform us when making the order)

1. All the goods are inspected before shipment, so if you are not satisfied with the purchase, you can exchange the items in one week and you must contact us within 24 hours of the receipt of your purchase
2. The shipping and handling charge is not refundable and customer should be responsible for all the charges of returning and reshipping.
3. All return items must be in its original conditions, including box and accessories. Men made defects are not guaranteed, such as broken, scratched and so on.
4. For any items,please send by EMS or your local post when send back.

1.Buyer\'s early confirmation will be highly appreciated after receiving the items.
2.Since your feedback is very important to our business\'s development, we sincerely invite you to leave positive feedback for us if you are satisfied with our product and service. It\'ll just take you 1 minute,but this 1 minute has the extremely vital significance to us.
3.Please contact us before leaving any negative or neutral feedback. We will work with you to solve any problems.Thank you for your understanding!

We are an honest seller on Aliexpress. All our items come from China with high quality.
If you have any problems, we are very glad if you can contact us.We will try our best to help you.Hope have a good cooperation with you for a long time.
