2KM range Aomway mini Micro 200MW 32ch 5.8GHz Video Transmitter With Cable Set for fpv gopro RC MultiCopter DJI

Post on 2015-07-07 /  Last Updated: 2016-02-09 /  All Parts Accessories Listing /  Best prices for Parts Accessories /  Parts Accessories Best-Selling

2KM Range Aomway Mini Micro 200MW 32ch 5.8GHz Video Transmitter With Cable Set

Specification of 2KM range Aomway mini Micro 200MW 32ch 5.8GHz Video Transmitter With Cable Set for fpv gopro RC MultiCopter DJI

Use : Vehicles & Remote Control Toys
For Vehicle Type : Airplanes
Material : EVA
RC Parts & Accs : Radio Systems
Model Number : Micro 200MW
Brand Name : None
is_customized : Yes
Brand Name : Aomway
Min. Qty. 1/lot.
Evaluate Score : 4.7/5
Promotion End : 2016-03-10

Buy Now $32.00

--- Last Updated: 2016-02-09

--- Product prices and availability are accurate as of the date/time indicated and are subject to change.

--- Any price and availability information displayed on AliExpress.com at the time of purchase will apply to the purchase of this product.

--- Date/Timezone : Asia/Shanghai

Pictures and more details of 2KM range Aomway mini Micro 200MW 32ch 5.8GHz Video Transmitter With Cable Set for fpv gopro RC MultiCopter DJI

2KM range Aomway mini Micro 200MW 32ch 5.8GHz Video Transmitter With Cable Set for fpv gopro RC MultiCopter DJI

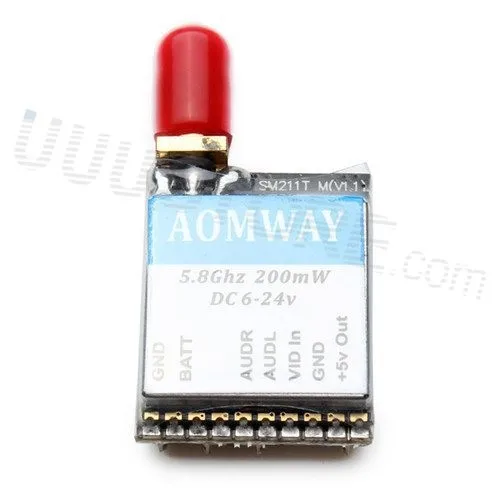

The Aomway Mini video transmitter packs 200mW of ultra clean 5.8GHz power in a micro sized video/audio package! A must have for those looking to save size and weight while still getting good performance. The Aowmay is transmitting a full range of 32 channels and only weighs 6g. It’s perfect for a wide range of aircraft, especially small models and 350 size multi-rotors such as Quanum Nova, DJI Phantom, QR X350 and more!

Features:
• Micro sized and light weight - perfect for use with small models
• 32 channels: Cover A, B, E bands and F bands
• Transmitter frequency: 5645-5945MHz with 200mW power output
• Transmitting distance > ~1500m (open area)

Modulate: Wideband FM Modulate
Video Format: NTSC/PAL
Output Impedance: 50 Ohm
Output Power: 23~24dBm
Channel: 32CH
Operating Voltage: 7V~24V
Supply Current: 190mA
Operating Temperature: -10~85
Video Band Width : 0~8.0 MHz
Audio Carrier Frequency: 6.5MHz
Video Input Level: 0.8~1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5~2.0 Vp-p
Audio Input Impedance: 10K Ohm

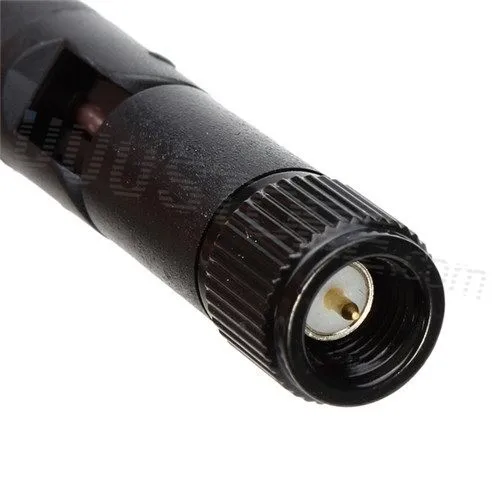

Connector: SMA (NOT RP)
Dimension: 26mm x 23mm x 8mm
Weight: 6g (without antenna)

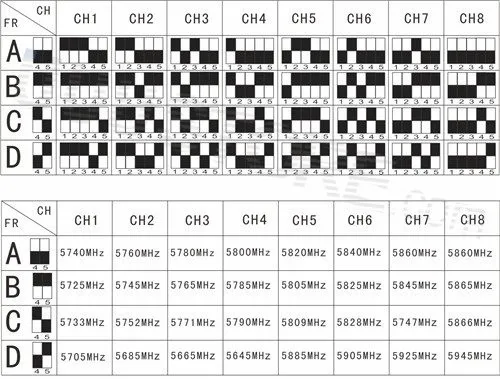

Frequency range:
1 x Aowmay 5.GHz 200mW 32CH A/V transmitter

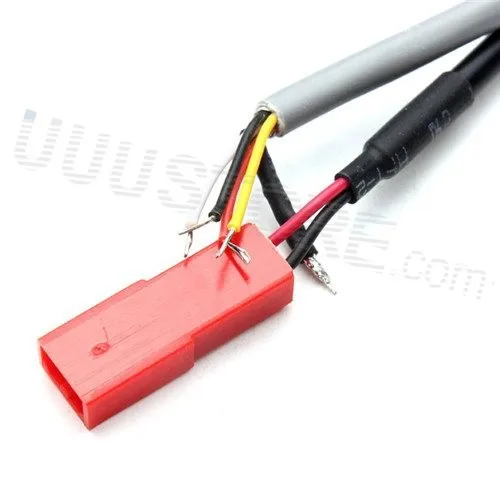

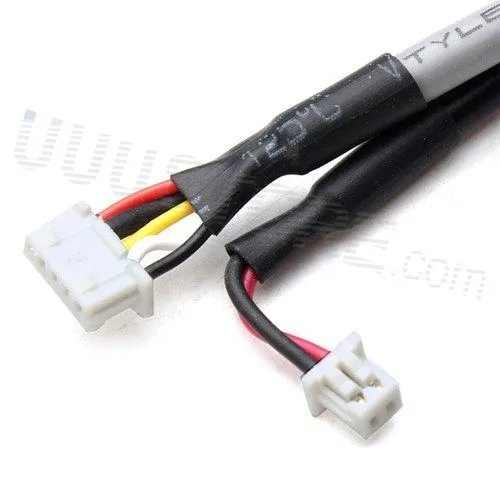

1 x A/V cable and Power cable

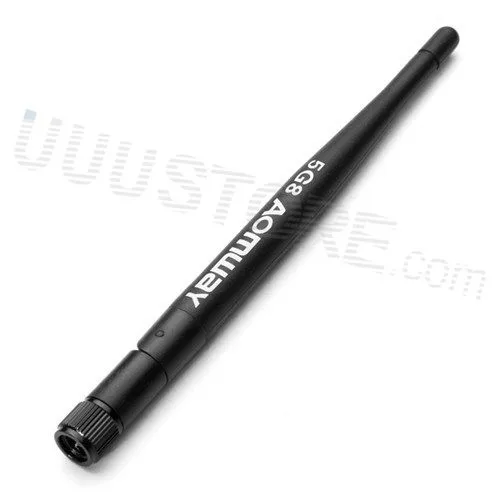

1 x 3dbi Omni antenna
