2PCS MX50 SE 100WX2 Dual Channels Audio Power amplifiers Board Diy Kits New Version

Post on 2016-10-03 / Last Updated: 2017-10-18 / All Amplifier Listing / Best prices for Amplifier / Amplifier Best-Selling

2PCS MX50 SE 100WX2 Dual Channels Audio Power Amplifiers Board Diy Kits New

Discount : 10% OFF
Min. Qty. 2/lot.
Evaluate Score : 4.9/5
Promotion End : 2017-11-11

Buy Now $14.94

--- Last Updated: 2017-10-18

--- Product prices and availability are accurate as of the date/time indicated and are subject to change.

--- Any price and availability information displayed on AliExpress.com at the time of purchase will apply to the purchase of this product.

--- Date/Timezone : Asia/Shanghai

Pictures and more details of 2PCS MX50 SE 100WX2 Dual Channels Audio Power amplifiers Board Diy Kits New Version

Descriptions:
Note:This is Diy Kits,you need do it yourself.

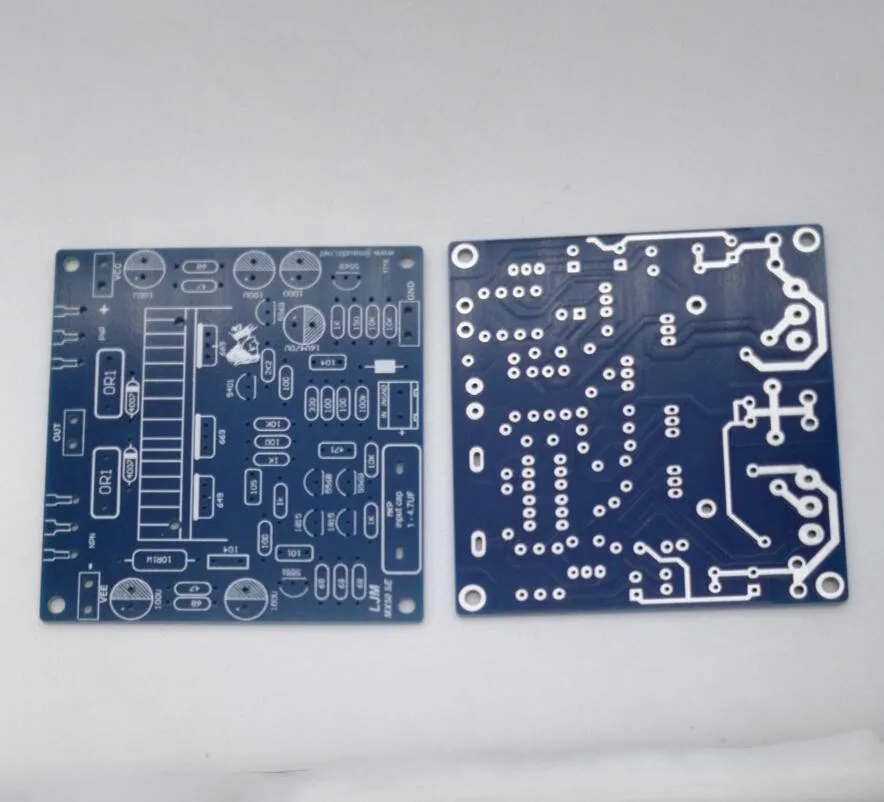

NO SCHEMATIC AND INSTRUCTION (components values have been marked on the PCB) COME WITHTHE ITEM.
MX50 SE version is designed to improve the new version of the classic with thousands of users on the basis of the fifth edition of the MX50.
Lower distortion, better control and resolving power. A single differential input, single-ended voltage amplifier stage, three-stage inverted Darlington output.
Fig. Image for content
Specification:
Supply Voltage: + -15v to + -45v
Output Power: 100W8R (+ - 42v)
Voltage Gain GAIN: 34times
Input Sensitivity: 1.2v 100w RMS 8 Europe
SNR: More than 98DB
Distortion: <0.009 THD 1K HZ 1OW
Output Stage quiescent current per channel IQ Approximately 30MA
PCB Dimension: 76mm *73mm

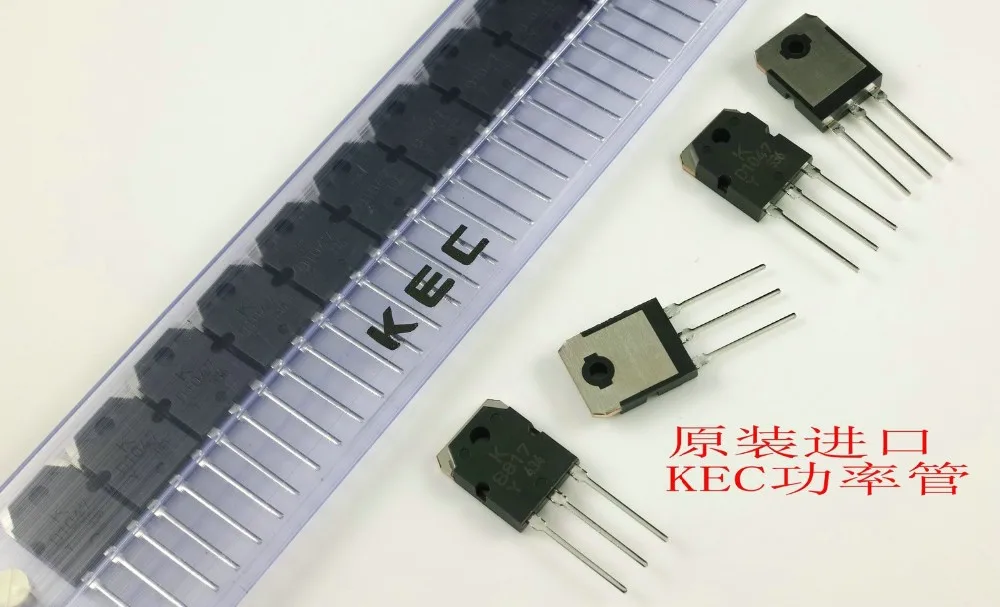

Installation: 649 669 must be installed on supporting the radiator.
After the installation does not require any adjustment, the quiescent current of each tube about 30MA. This version does not need to fly line. Just take two bassoon installed in the radiator can be.

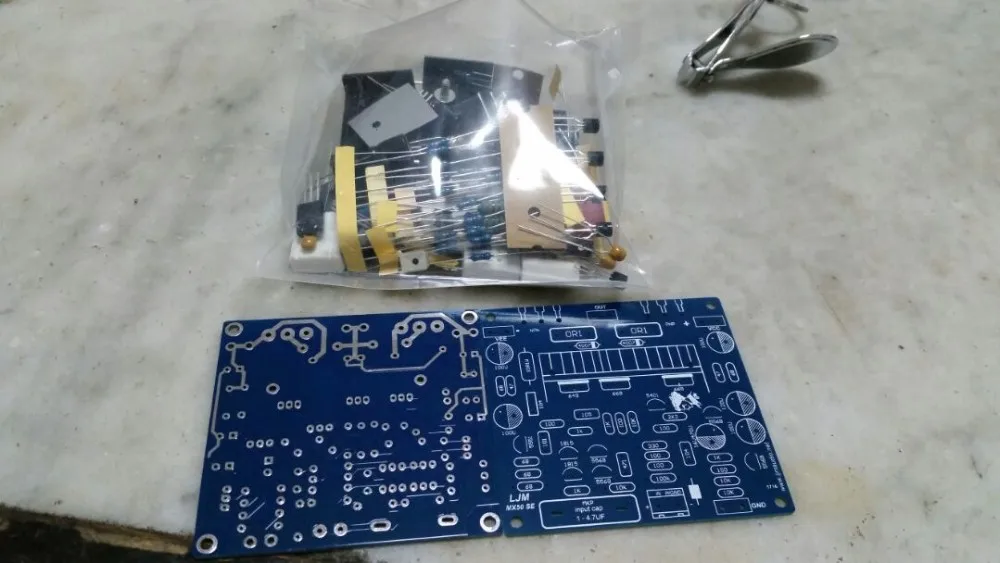

Packaging
2PCS MX50 SE 100WX2 Dual Channels Audio Power amplifiers Board Diy Kits New Version
Fig. Image for content
Fig. Image for contentFig. Image for content
TEST DSCOPE SERIES 3
Fig. Image for content
Fig. Image for content
Test result: frequency 20HZ- 20 K HZ + - 0.5 DB:
Fig. Image for content
24000 HZ FFT FOR 10W OUTPUT:
Fig. Image for contentFig. Image for contentFig. Image for contentFig. Image for contentFig. Image for content
Fig. Image for contentFig. Image for contentFig. Image for contentFig. Image for content
