F02192-A RC 4Axis Multi QuadCopter UFO RTF/ARFKK V2.3 Circuit board+1000KV Motor+30A ESC+Lipo+F450 Flamewheel+6ch TX&RX freeship

Post on 2015-07-04 /  Last Updated: 2016-04-19 /  All Parts Accessories Listing /  Best prices for Parts Accessories /  Parts Accessories Best-Selling

F02192-A RC 4Axis Multi QuadCopter UFO RTF/ARFKK V2.3 Circuit Board+1000KV

Specification of F02192-A RC 4Axis Multi QuadCopter UFO RTF/ARFKK V2.3 Circuit board+1000KV Motor+30A ESC+Lipo+F450 Flamewheel+6ch TX&RX freeship

Use : Vehicles & Remote Control Toys
For Vehicle Type : Helicopters
Brand Name : JMT
Material : Composite Material
RC Parts & Accs : Radio Systems
Model Number : F02192-A
Condition : brand-new
For Vehicle Type : Helicopter
Discount : 15% OFF
Min. Qty. 1/lot.
Promotion End : 2016-04-23

Buy Now $160.65

--- Last Updated: 2016-04-19

--- Product prices and availability are accurate as of the date/time indicated and are subject to change.

--- Any price and availability information displayed on AliExpress.com at the time of purchase will apply to the purchase of this product.

--- Date/Timezone : Asia/Shanghai

Pictures and more details of F02192-A RC 4Axis Multi QuadCopter UFO RTF/ARFKK V2.3 Circuit board+1000KV Motor+30A ESC+Lipo+F450 Flamewheel+6ch TX&RX freeship



RC 4Axis Multi QuadCopter UFO RTF/ARF:KK V2.3 Circuit board+1000KV Motor+30A ESC+Lipo+F450 Flamewheel+6ch TX&RX

F02192-A RC 4Axis Multi QuadCopter UFO RTF/ARFKK V2.3 Circuit Board+1000KV

HJ 450 450F Nylon Fiber Flamewheel Frame Airframe kit

F02192-A RC 4Axis Multi QuadCopter UFO RTF/ARFKK V2.3 Circuit Board+1000KV

Fetures:


by advanced engineering material,super
strong & smooth.

High quality and strong ability of
anti-fall, lower maintenance cost.

Compact design with small numbers of
components, you can assemble it by youself quickly and
easily.

Suitable for both beginners and senior

Excellent quad-copter
products.

- Support KK MWC by new disign PCB board(Not Included)

Speicifications:
Color: Red + White + Black
Shaft distance: 17.7in/450mm
- Net weight: 0.65lb/282g - by advanced
engineering material,super strong & smooth

- Kit(need you assemble yourself)

KKMulticopter v5.5 Circuit board V2.3 + Programmer
Firmware Loader USB *1 set


F02192-A RC 4Axis Multi QuadCopter UFO RTF/ARFKK V2.3 Circuit Board+1000KV

As for the USB,this is the new version,we will send the the new version,thanks!

For the program method,please contact meF02192-A RC 4Axis Multi QuadCopter UFO RTF/ARFKK V2.3 Circuit Board+1000KV

1. Simple structure, Easy
to Maintain and Debug Control

2. Relying on
potentiometer adjust gyro sensitivity.

3. Full servo signal
output, support normal ESC / analog servo

4. Support for single-axis
/ UFO, Y3 3-axis, Y4-type 3-axis, 4 axis, 6 axis, V22 flight
mode

5. Supports 4-axis "+" and
"X" flight mode, support for six-axis "HEXA6" and "Y6" flight
mode.


FlyCam MultiCopter
Controller Blackboard(kkMultiCopter)



A 2212 A2212 1000KV Brushless
Outrunner Motor W/ Mount *4pcs
F02192-A RC 4Axis Multi QuadCopter UFO RTF/ARFKK V2.3 Circuit Board+1000KV
KV: 1000
Max Efficiency: 80%

Max Efficiency Current: 4-10A
(>75%)
Current Capacity: 12A/60s

No Load Current @ 10V: 0.5A

No. Of Cells: 2-3 Li-Poly

Motor Dimensions: ?27.5 x 30mm

Shaft Diameter: ?3.17mm

Weight: 47g/set
Including: 1
set 2212 1000KV Brushless Outrunner Motor with Mounts *4

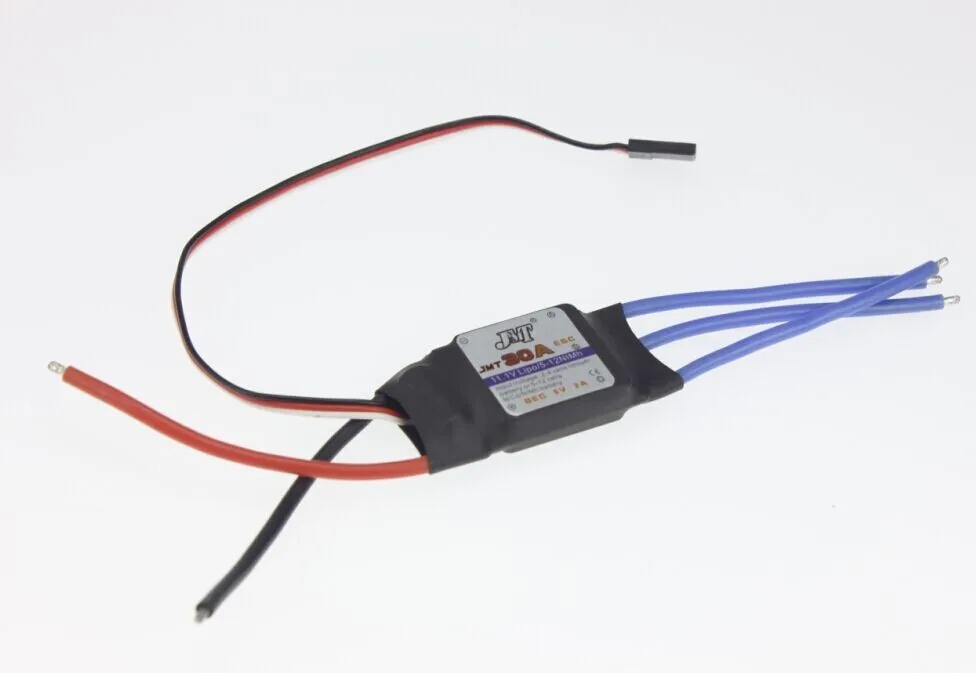

FMT 30A ESC Speed Controller *4 pcs
F02192-A RC 4Axis Multi QuadCopter UFO RTF/ARFKK V2.3 Circuit Board+1000KV


This ESC do not have the English instruction.
Before producing, the manufacturer have set up the program, the ESC do not need additional program.
 JMT 30A Brushless ESC Speed Controller For RC RC Quadcopter Hexacopter Multi-Rotor Aircraft

1.  quantity:1PCS

2.  100% Brand New!

3.  No manual.

4.  For KK MK MWC RC Quadcopter Hexacopter Multi-Rotor Aircraft

5.  Preview:

1  Specification

1.1 Output:  Continuous 25A, Burst 40A up to 10 Secs.

1.2 Input Voltage:  2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.

1.3 BEC:  3A

1.4 Max Speed:  210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM,
35,000rpm for 12 poles BLM.                                (BLM: BrushLess Motor)

1.5 Size:  45mm (L) * 25mm (W) * 11mm (H).

1.6 Weight: about 25g.

2  Features

2.1 Safety Arming Feature:  Regardless the throttle stick position, the

motor will not spin after battery connected.

2.2 Throttle Calibration: Throttle range can be configured to provide best
throttle linearity, fully compatible with all market available transmitters.

2.3 Programmable Items:        Brake Setting: brake enabled / brake

disabled.        Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).        Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the

output power / Cutoff the output power.        Low Voltage Cutoff Protection

Threshold (Cutoff Threshold): low / medium / high.        Start Mode:

normal / soft / very soft.        Timing: low / medium / high.        Reset:

reset  all  the programmable items to their default settings.

2.4 Full Protection Features: Low voltage cutoff protection / Over-heat

protection / Throttle signal lost protection.

3   Advantages

3.1 Military standard capacitor of extreme low resistance increases the

ability of prevention of unwanted RF noise during flying.

3.2 Extreme low resistance PCB is helpful for getting a super current

endurance capability.

3.3 Microprocessor uses separate voltage regulator IC, with good anti-

jamming capability.


11.1V 20C 2200Mah Lipo Battery *1 pcs
F02192-A RC 4Axis Multi QuadCopter UFO RTF/ARFKK V2.3 Circuit Board+1000KV

Specification:

Output:11.1V(3S1P)2200mAh
Weight
About:193g

This Li-poly
battery features high efficient and high discharge,use a inspection machine to match packs, suitable for All Align trex 450
rc heli and other professional model
airplanes, cars, and guns.

Max
Continuous Discharge: 10C, Burst Discharge: 15C. Normal operating temperature is
approx. 40-65°C(within 80% of rated
discharge). Max. temperature: 80°C.
NOTE:
When using
high energy Li-poly Battery, please do not over-discharge, over-charge
batteries, or result over-high temperature. Discharging
capacity can't exceed 80% of the max capacity after full
charging to ensure a good cycle performance. Recommend to full
charge
a brand new battery before using and only discharge the battery 50% for first 5
times
to make a good efficiency of the battery. Please make it a habit to always count
time
for flight, or please set a low voltage protection on ESC (Cell voltage after
stopping using can not lower than 3.2V). Do not use the
battery at insufficient of voltage.

Do not expose batteries to sunshine or store/ charge
batteries at the temperature up to 35°C in a airtight car.
The environment high temperature could cause the damage or the
danger
of burst. If the battery becomes hot while high current discharging or
flying,
please do not charge the battery immediately. Wait to
cool down(about 20 mins), then inspect to recharge. If against follow the original
factory using rules, possibly cause the battery to inflate or
any dangerous accident happens.


Tarot 1045 5mm
Efficient/Hardness Blade Propeller TL2710-01/TL2710-03 (2 pairs)
F02192-A RC 4Axis Multi QuadCopter UFO RTF/ARFKK V2.3 Circuit Board+1000KV

(For the color of propeller,we will ship random color according to our invertory)

F02192-A RC 4Axis Multi QuadCopter UFO RTF/ARFKK V2.3 Circuit Board+1000KV

Digital 2.4GHz 6-Channel RC
system T6EHP adopted FHSS 2.4GHz technology, it is applied for 3D helicopter.
Owing to the most advanced 2.4GHz radio control technology, it is needless to
fit crystals for both transmitter and receiver, meanwhile RC system can avoid
the interaction problem best up to the advanced code matching
mechanism.
Standard Programming
Functions :
Model Select six model
memory.
Model Type helicopter programming. (for airplane is another
version)
Servo Reversing on all six channels.
Dual Rate/Exponential for
ailerons, elevator and rudder.
End Point Adjustment fine-tunes servo throws
on all six channels.
Digital Trim stores trim settings for each model for
aileron, elevator, rudder and throttle.
Fail Safe a safety throttle setting
in case of loss of transmitter signal.
Battery Fail Safe moves the throttle
to a preset position when the airborne pack reaches 3.8V.
Stick Mode choose
from Mode 1 through 4.
Range Checking Power Down reduces transmitter output
power for up to one minute, allowing range checking from 50 paces away.

Changeable Throttle Stick select ratchet for airplanes or smooth for helis.

Adjustable Stick Length choose the length that suits your flying style.
Helicopter-Specific
Programming Functions:
5-Point Normal and Idle Up
Throttle/Pitch Curves.
Throttle Hold for autorotation.
Revo (Revolution
Mixing) mixes rudder and pitch together.
Gyro Mixing two gyro gain settings
can be programmed and selected during flight.
Swash to Throttle Mixing
corrects slowing of the engine's speed caused by the swashplate.
Swashplate
Types choose from 1S (independent aileron, pitch and elevator servos linked to
the swashplate), 3S (120° CCPM), or 3E (90° CCPM).
Swash AFR Adjustable
Function Rate, for use with 1S, 3S or 3E swash
types

(Please pay attention this:

The Radio Controller Software upgraded,The wire connecting for Receiver and KKMulticopter board has been changed.Please check and like this:)
F02192-A RC 4Axis Multi QuadCopter UFO RTF/ARFKK V2.3 Circuit Board+1000KVF02192-A RC 4Axis Multi QuadCopter UFO RTF/ARFKK V2.3 Circuit Board+1000KV


(assembly required buyers)

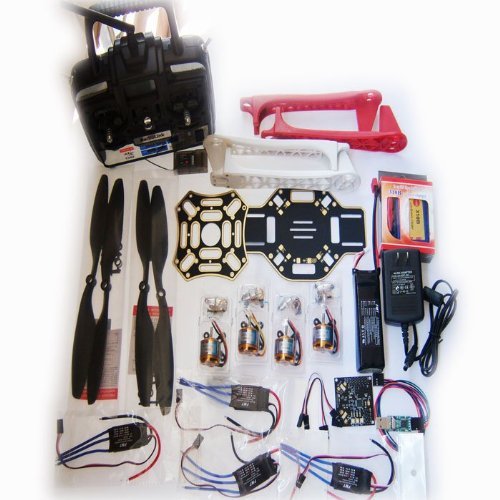

F02192-A RC 4Axis Multi QuadCopter UFO RTF/ARF:
HJ 450 450F Nylon Fiber Flamewheel Frame *1
A2212 1000KV Motor installed
base*4
JMT 25A ESC*4
V2.3 Circuit board*1
Programmer Firmware Loader
USB*1
1045 Propeller*2 pair

JMT 11.1V 2200mah 20c lipo battery *1
Relate wire
Charger+adapter * 1 set
Radiolink T6EHP-E 2.4G 6Ch Transmitter and Receiver*1



Best-Selling of Parts Accessories

Temperature Probe Cable Cord Sensor For Imax B5 B6 B6AC Lipo Battery Dual

Temperature Probe Cable Cord Sensor For Imax B5 B6 B6AC Lipo Battery Dual More Details

10pcs XT60 XT-60 Male Female Bullet Connectors Plugs For RC Lipo Battery (5 pair) Wholesale

10pcs XT60 XT-60 Male Female Bullet Connectors Plugs For RC Lipo Battery (5 pair) Wholesale More Details

Flysky FS-i6 FS I6 2.4G 6ch RC Transmitter Controller wvith FS-iA6 Receiver For RC Helicopter Plane Quadcopter Glider drone

Flysky FS-i6 FS I6 2.4G 6ch RC Transmitter Controller wvith FS-iA6 Receiver For RC Helicopter Plane Quadcopter Glider drone More Details

14AWG Flexible Silicone Wire Cable Soft High Temperature Tinned copper UL 1M

14AWG Flexible Silicone Wire Cable Soft High Temperature Tinned copper UL 1M More Details

Wholesale 1pcs DC DC step up converter boost 2A power supply module IN 2V- 24V to OUT 5V-28V adjustable regulator board Dropship

Wholesale 1pcs DC DC step up converter boost 2A power supply module IN 2V- 24V to OUT 5V-28V adjustable regulator board Dropship More Details

RC Flight Control Board Anti-vibration Set Shock Absorber fr Quad APM 2.5 2.6 2.8

RC Flight Control Board Anti-vibration Set Shock Absorber fr Quad APM 2.5 2.6 2.8 More Details

10CM 2S1P 3S1P 4S1P 5S1P 6S1P 7S1P 8S1P 9S1P 10S1P Balance Charger Cable 22 AWG Silicon Wire JST XH Plug More Details

1pcs BX100 1-8S Lipo Battery Voltage Tester/ Low Voltage Buzzer Alarm/ Battery Voltage Checker with Dual Speakers

1pcs BX100 1-8S Lipo Battery Voltage Tester/ Low Voltage Buzzer Alarm/ Battery Voltage Checker with Dual Speakers More Details

Wholesale 5 Pair Of XT60 XT-60 Male Female Bullet Connectors Plugs For RC Lipo Battery Free Shipping More Details

5pcs/lot 2S 3S 4S 5S 6S Lipo Battery Balance Charger Cable IMAX B6 Connector Plug Wire Wholesale

5pcs/lot 2S 3S 4S 5S 6S Lipo Battery Balance Charger Cable IMAX B6 Connector Plug Wire Wholesale More Details

Best Prices of Parts Accessories

100% Original Motor 4pcs SYMA X5C X5C-1 X5 Motor Engine AB with Wheel Gear for RC Quadcopter Accessories X5C VS JXD385 V272 H107 Discount 52% Off

New Arrival Fireproof RC LiPo Battery Safety Bag Safe Guard Realacc Fire Retardant Lipo Battery Bag 220x155x115mm With Handle

New Arrival Fireproof RC LiPo Battery Safety Bag Safe Guard Realacc Fire Retardant Lipo Battery Bag 220x155x115mm With Handle Discount 51% Off

RC Quadcopter Spare Parts Eachine Upgrade H8 Mini H8 3D Battery 3.7V 260mAh Discount 50% Off

Wholesale High Quality RC Transmitter Switch For Walkera For FUTABA  FlySky  WFLY  JR

Wholesale High Quality RC Transmitter Switch For Walkera For FUTABA FlySky WFLY JR Discount 50% Off

5PCS 20MM * 300MM ESC Servo Battery Straps Strap Ties Bend Wire Bundle Ribbon For 450 500 RC Helicopter Car

5PCS 20MM * 300MM ESC Servo Battery Straps Strap Ties Bend Wire Bundle Ribbon For 450 500 RC Helicopter Car Discount 50% Off

1 Pair Mini Lipo Battery Connector Adapter For Tamiya Plug RC Car Boat Heli

1 Pair Mini Lipo Battery Connector Adapter For Tamiya Plug RC Car Boat Heli Discount 50% Off

High Quality Eachine 1000TVL 1/3 CCD 110 Degree 2.8mm Lens Mini FPV Camera NTSC PAL Switchable For FPV Camera Drone

High Quality Eachine 1000TVL 1/3 CCD 110 Degree 2.8mm Lens Mini FPV Camera NTSC PAL Switchable For FPV Camera Drone Discount 50% Off

V56 Upgrade V59 Universal LCD TV Controller Driver Board PC/VGA/HDMI/USB Interface

V56 Upgrade V59 Universal LCD TV Controller Driver Board PC/VGA/HDMI/USB Interface Discount 50% Off

RC Boat Screw Propeller P40*D27/30/32/35/38/40/42/45/47mm Remote Control Boats Parts

RC Boat Screw Propeller P40*D27/30/32/35/38/40/42/45/47mm Remote Control Boats Parts Discount 50% Off

4PCS Eachine H8 Mini RC Quadcopter Spare Parts Blade Set H8mini-005 For CX -10  CX-10w FQ777-124 Eachine H8 Mini

4PCS Eachine H8 Mini RC Quadcopter Spare Parts Blade Set H8mini-005 For CX -10 CX-10w FQ777-124 Eachine H8 Mini Discount 50% Off

Top 10 Best All Offers

E17 CREE XM-L T6 3800Lumens cree led Torch Zoomable cree LED Flashlight Torch light For 3xAAA or 1x18650 Free shipping

E17 CREE XM-L T6 3800Lumens cree led Torch Zoomable cree LED Flashlight Torch light For 3xAAA or 1x18650 Free shipping Discount 94% Off

high-quality Mini Black Brand 2000LM Waterproof LED Flashlight 3 Modes Zoomable LED Torch penlight free shipping

high-quality Mini Black Brand 2000LM Waterproof LED Flashlight 3 Modes Zoomable LED Torch penlight free shipping Discount 93% Off

high-quality Mini Black CREE 2000LM Waterproof LED Flashlight 3 Modes Zoomable LED Torch penlight free shipping

high-quality Mini Black CREE 2000LM Waterproof LED Flashlight 3 Modes Zoomable LED Torch penlight free shipping Discount 93% Off

ZK92 CREE Q5 Mini Black 2000LM Waterproof LED Flashlight 3 Modes Zoomable LED Torch penlight Free Shipping

ZK92 CREE Q5 Mini Black 2000LM Waterproof LED Flashlight 3 Modes Zoomable LED Torch penlight Free Shipping Discount 93% Off

Mini LED Flashlight Waterproof Powerful LED Flashlight Tactical Flashlight 2000 Lumens Zoomable CREE 3 Modes LED Torch Linternas

Mini LED Flashlight Waterproof Powerful LED Flashlight Tactical Flashlight 2000 Lumens Zoomable CREE 3 Modes LED Torch Linternas Discount 91% Off

2016 LED flashlight Lanterna led High Power Torch 2000 lumen Zoomable mini Flashlight tatica light lantern high-quality

2016 LED flashlight Lanterna led High Power Torch 2000 lumen Zoomable mini Flashlight tatica light lantern high-quality Discount 90% Off

Wholesale 9W Ceiling downlight Epistar LED ceiling lamp Recessed Spot light AC85-265v for home illumination led bulb light

Wholesale 9W Ceiling downlight Epistar LED ceiling lamp Recessed Spot light AC85-265v for home illumination led bulb light Discount 90% Off

Z30 led Headlight 9000 Lumen 3 T6 headlamp 3x XM-L T6 LED Head Lamp Flashlight head torch Headlamp battery Recharge CAR charger

Z30 led Headlight 9000 Lumen 3 T6 headlamp 3x XM-L T6 LED Head Lamp Flashlight head torch Headlamp battery Recharge CAR charger Discount 90% Off

Rose LED String Lights Battery Wedding Birthday Decoration Lightings Rose Events and Parties 2M 20LED LED Guirlande Lumineuse

Rose LED String Lights Battery Wedding Birthday Decoration Lightings Rose Events and Parties 2M 20LED LED Guirlande Lumineuse Discount 90% Off

KZ - DT3 interactive two-unit high-end mobile music enthusiast Q value headset ear headphones bass Discount 88% Off

Other Posts

1pcs Hot 2M 7mm 6 LED USB Camcorders Waterproof Endoscope Borescope Snake Inspection Video Camera

Lastest Post : 1pcs Hot 2M 7mm 6 LED USB Camcorders Waterproof Endoscope Borescope Snake Inspection Video Camera

F11323/34 JJRC H8C 4CH 2.4G 0.3MP Camera LCD RC Quadcopter FPV Drone Helicopter RTF 30W 3D 6-Axis Gyro Explorer Toys + FP

Next Post : F11323/34 JJRC H8C 4CH 2.4G 0.3MP Camera LCD RC Quadcopter FPV Drone Helicopter RTF 30W 3D 6-Axis Gyro Explorer Toys + FP

Prev. Post : EMS MJX X101 SYNC IMAGE 2.4G RC quadcopter drone rc helicopter 6-axis can add C4005 wifi camera FPV Greater than Syma X8C

Remote Control Camera WiFi Action Camera 1080p full HD Camera Waterproof gopro hero 3 hero 4 camcorder style digital car camera

First Post : Remote Control Camera WiFi Action Camera 1080p full HD Camera Waterproof gopro hero 3 hero 4 camcorder style digital car camera
