FPV 5.8G 5.8Ghz 200mW 32 Channels Wireless A/V transmitter and receiver TS5823+RC832 Tx & Rx Set for aircraft DJI Phantom Gopro
Skyzone has forged a reputation of quality and reliability and has been tested and developed by FPV pilots for FPV pilots.

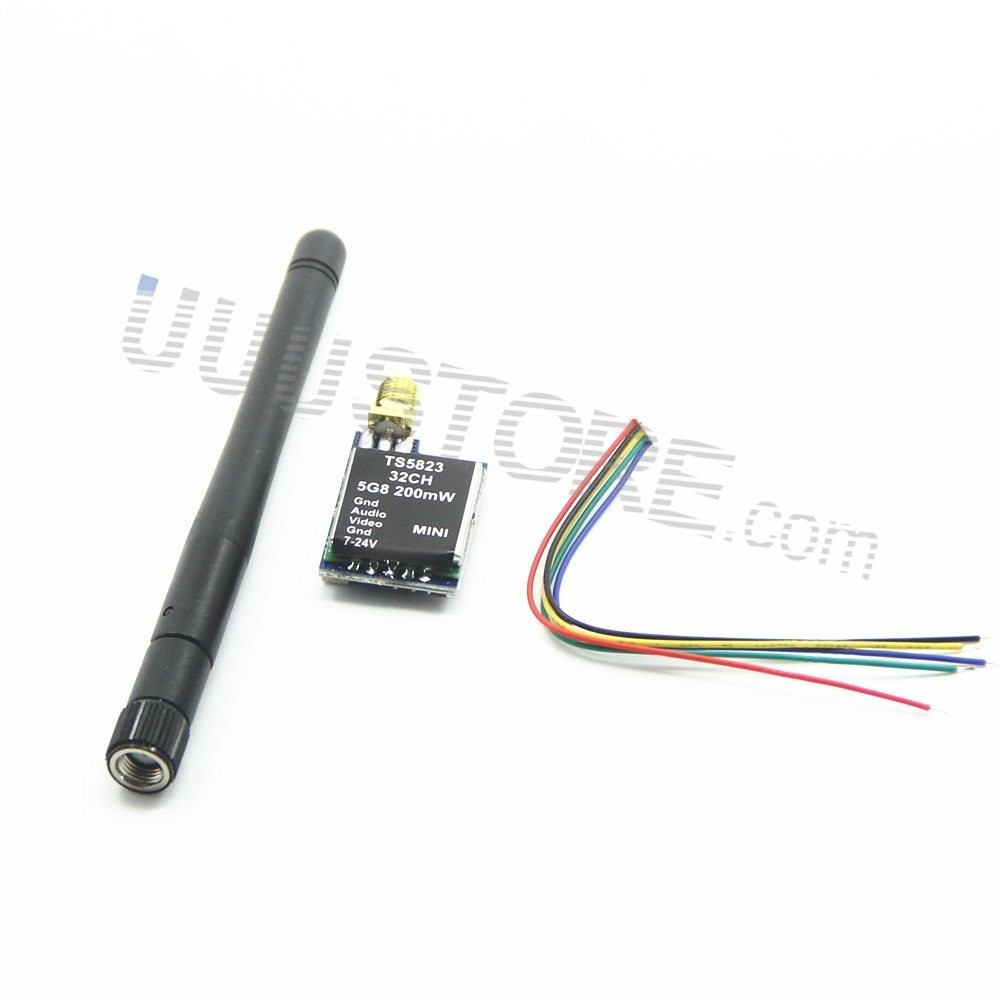

The TS5823 transmitter packs 200mW of ultra clean 5.8GHz power in a micro sized video/audio transmitter! A must have for those looking to save size and weight while still getting good performance. The TS5823 is transmitting a full range of 32 channels and only weighs 10g. It's perfect for a wide range of aircraft, especially small models and 350 size multi-rotors such as Quanum Nova, DJI Phantom, QR X350 and more!

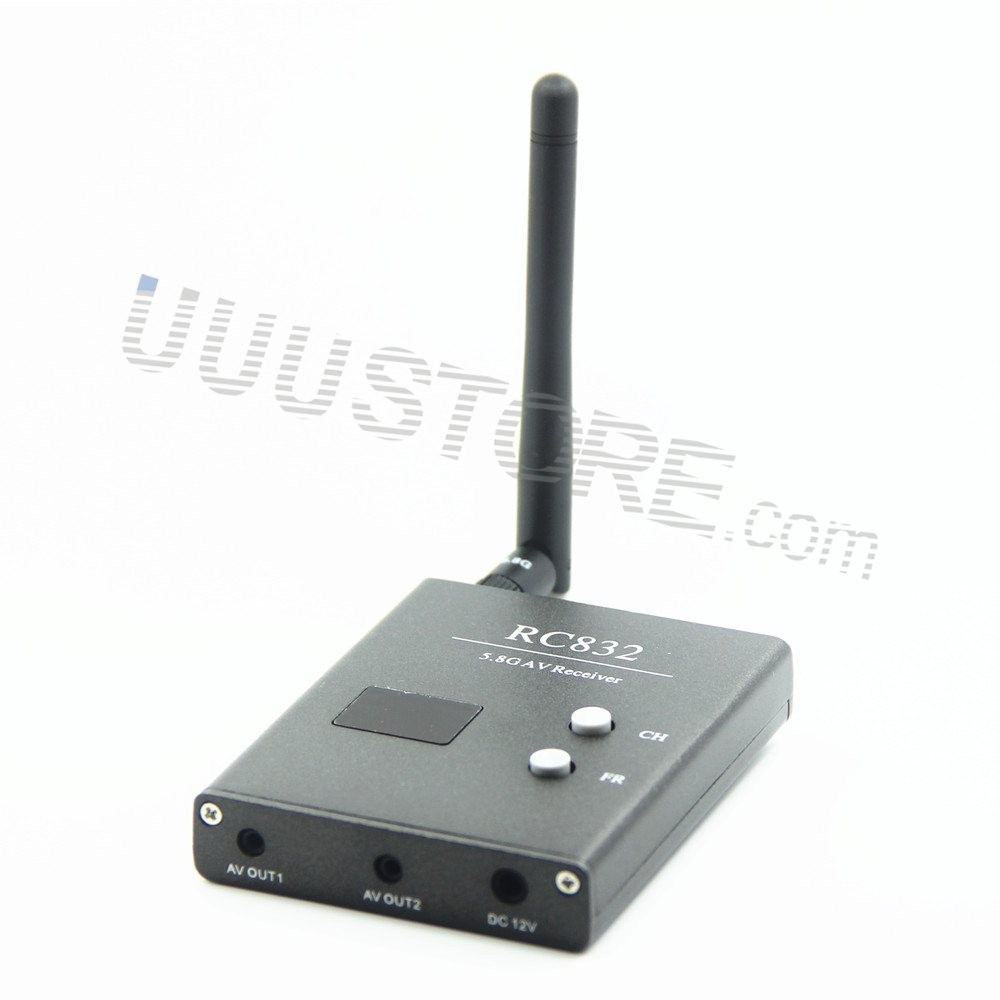

The RC832 Receiver is nice and small in size for easy integration into your ground station, but big in quality and features. The receiver uses the same two button interface as the TS832 Transmitter making channel swapping a breeze. There are two independent AV outputs for both audio and video. So you can use a monitor and set of goggles or maybe a DVR to record your flight, for when your significant other asks where you were for the last 4 hours. Powering the receiver at the field is as easy as plugging in a 3 cell lipoly into the included prewired cable with mini JST. It just doesn't get any simpler than this.
*For best range and video link stability we recommend using the Boscam 5.8GHz Cloud Spirit circular-polarized Antenna Set (SMA-RP) available below in the accessory's tab
- Micro sized and light weight - perfect for use with small models
- 32 channels: Cover A, B, E bands and F bands
- Two switching buttons for the band and channel
- digit display for the band and channel
- Power off memory for last channel and band
- dual Independent video and audio signal outputs
- Transmitter and receiver frequency: 5645-5945MHz
Video format supported: NTSC/PAL
Antenna connection: RP-SMA, jack (module side, both TX and RX)
Transmitter TS5823 Specification:
Output Impedance: 50 Ohm
Output Power: 23~24dBm
Operating Voltage: 7V~24V
Supply Current: 190mA
Operating Temperature: -10~85 Video Band Width : 0~8.0 MHz
Audio Carrier Frequency: 6.5MHz
Video Input Level: 0.8~1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5~2.0 Vp-p
Audio Input Impedance: 10K Ohm
Dimension: 40mm x 23mm x 8mm
Weight: 7g (without antenna)
Receiver RX RC832 specs:
Power input: 12V
Working current: 200mA max
Antenna impedance: 50Ω
Antenna gain: 2db
Rx sensitivity -90dBm
Video impedance: 75Ω
Video format: NTSC/PAL auto
Dimension: 80x 65 x15mm
1 x TS5823 transmitter
1 x RC832 receiver
2 x 5.8G 5DB antenna
3 x cable
