Specification of FPV Combo System 5.8Ghz 600mw boscam Transmitter and Receiver and HD monitor Set for Gopro Dji Phantom RC MultiCopter
Use : Vehicles & Remote Control Toys
Technical parameters : Value 2
For Vehicle Type : Airplanes
Tool Supplies : Battery
Material : Metal
Remote Control Peripherals/Devices : Receivers
RC Parts & Accs : Radio Systems
Upgrade Parts/Accessories : Adapter
Four-wheel Drive Attributes : Assemblage
is_customized : Yes
Min. Qty. 1/lot.
Evaluate Score : 4.4/5
Check Latest Price
--- Last Updated: 2017-07-22
--- Product prices and availability are accurate as of the date/time indicated and are subject to change.
--- Any price and availability information displayed on AliExpress.com at the time of purchase will apply to the purchase of this product.
--- Date/Timezone : Asia/Shanghai
Pictures and more details of FPV Combo System 5.8Ghz 600mw boscam Transmitter and Receiver and HD monitor Set for Gopro Dji Phantom RC MultiCopter
FPV Combo System 5.8Ghz 600mw 5km Transmitter and Receiver for Gopro xiao yi xiao mi SJ4000 SJCAM QAV250 DJI Phantom QuadcopterUSD 55.90/piece FPV Combo system 5.8Ghz 600mw Transmitter Receiver No blue monitor for xiao yi camera Gopro SJ4000 QAV250 DJI Phantom QuadcopterUSD 65.90/piece FPV Combo System 5.8Ghz Transmitter Receiver no blue FPV Monitor 900TVL ccd Camera DJI Phantom QAV250 CX20 Quadcopter walkeraUSD 67.90/piece FPV Combo System boscam 5.8ghz 600mw transmitter receiver No blue monitor SJ4000 Camera for walkera CX20 DJI Phantom QAV250 F450USD 119.00/piece RC FPV Combo System 5.8Ghz 600mw Transmitter Receiver no blue Monitor 800TVL Camera DJI Phantom QAV250 CX20 Quadcopter walkeraUSD 63.50/piece FPV Combo System 5.8Ghz 600mw boscam Transmitter and Receiver and No blue HD monitor Set for Gopro Dji Phantom RC MultiCopterUSD 57.90/piece
FPV Combo System 5.8Ghz 600mw boscam Transmitter and Receiver and No blue HD monitor Set for Gopro Dji Phantom RC MultiCopter

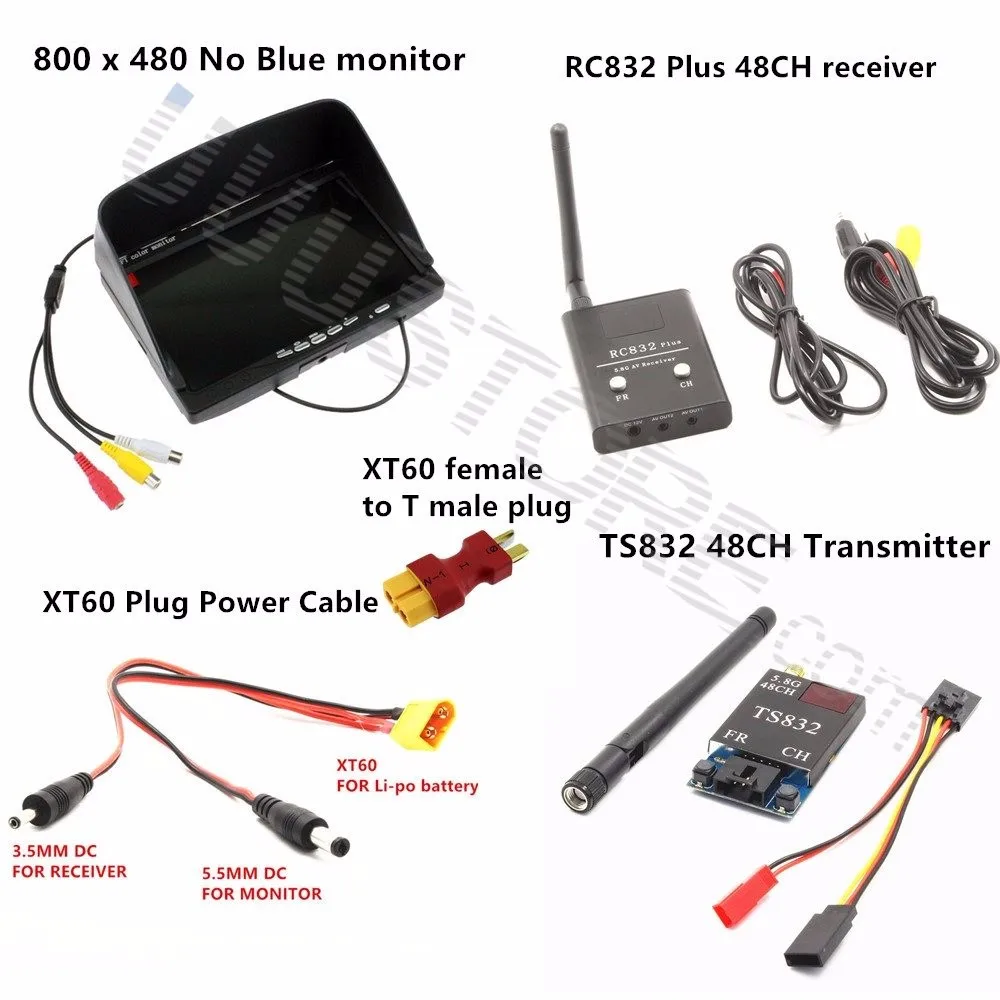

1 x Boscam 5.8G 600mW 48 Channels Wireless AV Transmitter with all cable
1 x Boscam 5.8G 48 Channels wireless AV receiver with all cable
1 x 800x480 No Blue HD Monitor with sunshade
1 x XT60 plug power cable for the monitor and receiver
1 x XT60 female to T male plug
You can select to add gopro av cable(USB po rt camera) ,xiao yi av cable and sjcam sj4000 av cable(Mini usb port camera),so that you can use your camera.
This item includes all cables,it is very easy to install,No soldering.
So the monitor and receiver can use one 3S lipo battery.
And the tranmsitter can use the 3S lipo battery from the drone.
5.8Ghz 600mW Boscam transmitter TS832 and receiver RC832 description:
Boscam has forged a reputation of quality and reliability and has been tested and developed by FPV pilots for FPV pilots.
The TS832 Transmitter packs a whopping 600mW of ultra clean 5.8GHz power! A must for those looking for longer range and locked in video. The TS832 is transmitting a full range of 48 channels and uses an easy to use 2 button interface, it also comes with a clean pre-wired harness, and only weighs in at a scant 21g, itâs Perfect for a wide range of aircraft!
The RC832 plus Receiver is nice and small in size for easy integration into your ground station, but big in quality and features. The receiver uses the same two button interface as the TS832 Transmitter making channel swapping a breeze. There are two independent AV outputs for both audio and video. So you can use a monitor and set of goggles or maybe a DVR to record your flight, for when your significant other asks where you were for the last 4 hours. Powering the receiver at the field is as easy as plugging in a 3 cell lipoly into the included prewired cable with mini JST. It just doesnât get any simpler than this.
*For best range and video link stability we recommend using the Boscam 5.8GHz Cloud Spirit circular-polarized Antenna Set (SMA-RP) available below in the accessoryâs tab
â¢ 48 channels: Cover A, B, E,F,H bands and L bands
â¢ Two switching buttons for the band and channel
â¢ Two digits display for the band and channel
â¢ Power off memory for last channel and band
â¢ dual Independent video and audio signal outputs
Video format supported: NTSC/PAL
Antenna connection: RP-SMA, jack (module side, both TX and RX)
Transmitter TX TS832 specs:
Power input: DC 11.1V (3S battery)
Transmitting power: 600mW
Antenna gain: 2dbm
Working current: 220mA at 12V
Video bandwidth: 8Mhz
Audio bandwidth : 6.5Mhz
Dimension: 54x 32x 10mm(excluding antenna)
Receiver RX RC832 specs:
Power input: 12V
Working current: 200mA max
Antenna impedance: 50Î©
Antenna gain: 2db
Rx sensitivity -90dBm
Video impedance: 75Î©
Video format: NTSC/PAL auto
Dimension: 80x 65 x15mm
FR1: 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M
FR2: 5733M 5752M 5771M 5790M 5809M 5828M 5847M 5866M
FR3: 5705M 5685M 5665M 5645M 5885M 5905M 5925M 5945M
FR4: 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M
FR5: 5658M 5695M 5732M 5769M 5806M 5843M 5880M 5917M
FR6: 5362M 5399M 5436M 5473M 5510M 5547M 5584M 5621M
800x480 No Blue HD Monitor with sunshade description:it does not switch to the ''blue screen'' when the signal gets weak. (it is very important for FPV)
Panel Size: 7.0 inch
Panel Type: TFT LCD
Horizontal Frequency Range: 30~60kHz
Field Frequency Range: 50~75Hz
Dot Pitch: 0.0642 (W) x 0.1790 (H) mm
Display Ratio: 16:9
Brightness: 400 cd/m2;
Contrast Ratio: 500:1
Response Time: 15ms
Viewing Angle: 70°/70° (L/R) 50°/60° (U/D)
Input Voltage: DC 6~18V
Power Consumption: â¤ 5W
Working Temperature: -20°C ~ 60°C
Storage Temperature: -30°C ~ 70°C
Dimensions: 182 x 127 x 32mm
