Full HD POE Module Inside IP Camera Outdoor Waterproof 1080P 2MP Bullet IP Camera 6mm Lens Security IR-Cut P2P ONVIF

Post on 2015-08-13 / Last Updated: 2017-01-08 / All Surveillance Cameras Listing / Best prices for Surveillance Cameras / Surveillance Cameras Best-Selling

Full HD POE Module Inside IP Camera Outdoor Waterproof 1080P 2MP Bullet IP

Specification of Full HD POE Module Inside IP Camera Outdoor Waterproof 1080P 2MP Bullet IP Camera 6mm Lens Security IR-Cut P2P ONVIF

Technology : Infrared
Brand Name : gadinan
Sensor : CMOS
Special Features : Waterproof / Weatherproof
Type : IP Camera
High Definition : 720P(HD)
Model Number : 201504141104
Style : Bullet Camera
Lens : Standard6MM, (3.6MM/8MM/12MM optional)
Power supply : POE(Power Over Ethernet)
P2P : P2P Plug and Play
specific : IR-CUT filter
Housing : ABS plastic
is_customized : Yes
Min. Qty. 1/lot.
Evaluate Score : 4.4/5

Check Latest Price

--- Last Updated: 2017-01-08

--- Product prices and availability are accurate as of the date/time indicated and are subject to change.

--- Any price and availability information displayed on AliExpress.com at the time of purchase will apply to the purchase of this product.

--- Date/Timezone : Asia/Shanghai

Pictures and more details of Full HD POE Module Inside IP Camera Outdoor Waterproof 1080P 2MP Bullet IP Camera 6mm Lens Security IR-Cut P2P ONVIF

Warm Reminder
China Post timeliness is uncertain.
European countries may need 15-30 days.
South American countries may need 20-60days.
Russian Federation may need 25-90 days.
We do not recommend via China Post.
If this product is that you need urgent, please choose DHL Fedex EMS Aramex.
DHL Fedex EMS Aramex fees we have gone through accurate calculation, we recommend that you select them.

Fig. Image for content

Fig. Image for content720p 1.0MP Indoor/Outdoor POE IP Camera Mini CCTV Network Camera Waterproof 3.6mm Lens ONVIF IR CUT Day&Night P2PUS $ 32.99/piece
Fig. Image for content1.0MP 720P / 1.3MP 960P Mini 9-22mm varifocal lens CCTV Securiy Camera POE IP Camera Support ONVIFUS $ 32.99-37.99/piece
Fig. Image for content1.0MP 720P (3518E) 2 Array leds 4mm CS Lens Securiy Dome HD Network CCTV IP Camera Support Phone Android P2P ONVIF2.0 H.264US $ 29.99/piece
Fig. Image for content720p 1MP (960P 1.3MP Optional) PoE Indoor IP Camera CCTV Network 3.6mm Lens ONVIF 48 IR Leds IR-CUT Filter Day&Night P2P US $ 28.99-34.99/piece
Fig. Image for content Indoor/Outdoor Waterproof 1.0Megapixel 1MP HD 720P(1.3MP/960P) ONVIF H.264 IR-Cut P2P 3.6mm Lens Security Network IP cameraUS $ 33.99-39.99/piece
Fig. Image for contentOnvif XMeye Hi3516C+SONY IMX222 CMOS sensor 2MP 2.8-12mm Manual focus Zoom with IR-CUT P2P Board HD PoE IP CameraUS $ 52.99/piece
Fig. Image for content1920*1080P 2MP ONVIF 2.0 Waterproof Outdoor IR CUT Night Vision P2P Plug and Play 6mm Lens Metal Case Mini Bullet IP Camera US $ 52.99/piece
Fig. Image for content2MP 2.0 Megapixel 1080P POE IP Camera Security Dome Indoor CCTV 3MP 3.6mm Lens IR-Cut Support ONVIF Mobile PhoneUS $ 43.99/piece

Fig. Image for content

Mechanical IR-Cut Filter

The camera has a built-in mechanical IR-cut filter placed in front of the image sensor to filter out infrared light in the daytime, producing better color reproduction. At nighttime or when the built-in light sensor detects low-light conditions, IR-cut filter is automatically removed to achieve better light sensitivity.

Fig. Image for content

What is an IR Cut Filter?

An Automatic IR Mechanical Cut Filter blocks infrared light but allows colors visible to the naked eye to pass through. During low/no light conditions, the IR Cut Filter moves away from the lens to let in100% of the infrared light for maximum night vision performance. This results in the camera image changing to Black and White for better image quality.

NOTE:Not all Day/Night Cameras have an Auto IR Cut filter.

Fig. Image for content

During the day, the IR cut filter blocks any infrared light from entering the lens for true color reproduction.

Fig. Image for content

H.264 Main Profile

2.0 Megapixel 1920*1080 Resolution

Dual H.264 Stream, resolution, frame rate, bit rate adjustable

Support RTSP Compatible with VLC Media Player

Onvif Compliant, support Milestone, Axxon, NUUO

support Onvif Version: 2.0

1/2.7"OV2710CMOS Sensor Progressive Scan

support Day/Night, 20-30m IR Range

IP66 Waterproof Enclosure, indoor / outdoor Use

System Architecture

Embedded RTOS design, dual-core 32-bit DSP (Hi3516C), pure hardware compression, watchdog;

Sensor

1 / 2.7 "OV 2710 CMOS sensor; Support Day & Night (supports optional IR-CUT) sense infrared signal support photoresistor linkage, support CS mount lens; color 0.6Lux-F1.2, black and white 0.08 Lux-F1.2;

Video Processing

H.264 video encoding, supports dual stream, AVI format; support stream 0.1M ~ 8Mpbs adjustable; a support frame rate to 30 frames / sec adjustable;

Image Output

Main Stream: 1920 * 1080,1280 * 720; sub stream: 704 * 576;

Network Interface

One RJ45 Ethernet interface, 10 / 100M adaptive; support RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP network protocols;

Signal Interface

one photoresistor interface, one IR-CUT driven interface, support photoresistor input signal and IR-CUT, infrared light linkage;

USB interface

no

Alarm Input

no

Alarm Output

no

SD card

no

Lightning Protection

Power, network, POE comprehensive lightning protection, in line with Chinese standard GB / T17626.5, international standard IEC61000-4-5.

Business function

Support WEB configuration, support OSD, support real-time video transmission, support motion detection and alarm linkage IO front-end storage, support for front-end storage playback / download, support motion detection and alarm center IO screen pop-up reminders and linkage; supports MJPEG capture; support unified client remote monitoring software, MYEYE platform system applications; provide comprehensive SDK development package;

ONVIF protocol

Support

Phone monitoring

Support mobile remote monitoring (iOS, Android)

Other

DC12V power input interface, 3W power consumption, size 38mm * 38mm;

Package included:

1 X POE IP Waterproof Camera

1 x Camera Bracket

(It is POE,not need Power Adapter)

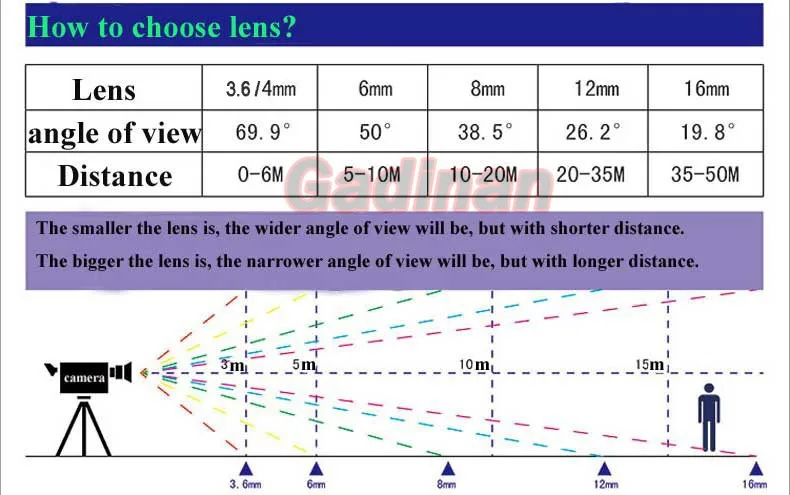

Note:Default 6mm lens, if you need 3.6mm / 8mm / 12mm / 16mm, when you order, be sure to leave a message in the order.

Fig. Image for content

Fig. Image for content

Fig. Image for contentFig. Image for contentFig. Image for contentFig. Image for contentFig. Image for contentFig. Image for content

Fig. Image for content

Real images (3.6mm lens)

Fig. Image for contentFig. Image for contentFig. Image for contentFig. Image for content

Instructions for use:

1,If you have a NVR, it is P2P,installation diagram:

Fig. Image for content

2,If you have not NVR, please install the CMS( Software in the CD ,or can download online,need contact us )on your PC

Fig. Image for content

Fig. Image for content

You can select the language(18 languages)

Fig. Image for content

How to watch via CMS:

Fig. Image for content

Fig. Image for content

Fig. Image for content

Fig. Image for content

Fig. Image for content

Fig. Image for content

How to find "Serial ID" (very important)

Fig. Image for content

Fig. Image for content

3,How to watch via web:

Visit website:www.xmeye.net

By Device:

Fig. Image for content

Fig. Image for content

Fig. Image for content

By User:

Please "Register"

Fig. Image for content

Then login into the user interface:

Fig. Image for content

Fig. Image for content

Fig. Image for content

Fig. Image for content

Fig. Image for content

4,How to watch via iPhone and Android:

Find "XMEye"Fig. Image for contentin Apple APP or Android Market

and then install it.

(Please bind the camera via web)

Fig. Image for content Fig. Image for content

Horizontal screen:

Fig. Image for content

About IP Cameras (PoE Module inside) and PoE Equipment

Fig. Image for content

The camera built POE module, you can connect as follows:

Fig. Image for contentFig. Image for content

If you needPOE Switch,Click on the link

Fig. Image for content

10/100Mbps 4 Ports POE Switch 15W for Surveillance Security IP Camera IEEE 802.3af Switch Power over Ethernet distance 300m

US$ 52.99/piece
Fig. Image for content

8 port PoE switch 802.3af IEEE Fast Ethernet Switch 10/100M 120W For POE IP Camera Dahua Hikvision Network camera

US$ 79.99/piece

Fig. Image for content

Fig. Image for content

If you have any problems of payment,please contact us!

If you need to buy more goods, but the price is not very cheap,or did not find in our store, please contact us!

Fig. Image for content

1. Item will be shipped within 1-3 business days.

2. Delivery Time:

----Via Express: Generally 3-10 working days.

----Via Air Mail: Generally 10-30 working days.

3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.

4.SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.

5. We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.

6.The shipping cost does not include any import taxes, and buyers are responsible for customs duties.

7. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!

Fig. Image for content

1.We also provide 12-month free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.

2.Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.

3.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.

The buyer will be responsible for the shipping fees to return the items.

Fig. Image for content

1. We guarantee that all our items are "as stated" in their descriptions. We strive for 100% customer satisfaction on every sale we complete.

2. Your satisfaction and positive feedback is very important to us. Please leave positive feedback and 5 stars if you are satisfied with our items and services.

3. If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.

Fig. Image for content
