If the clients claims the product has problem, we have right to remote check and help. We will remote by teamviewer software to visit your PC. Our company didn’t accept any refuse reasons. If you mind, please don’t buy.
1) H.264 compression format
2) 1.0 Megapixel Resolution, Support [email protected](1280*720)

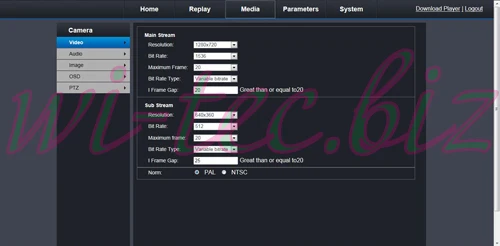

3) Dual Stream, resolution, bit rate adjustable

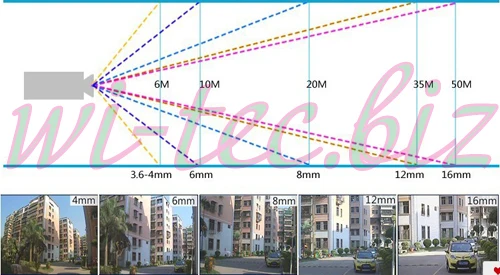

4) 3.6/6 mm Mega Pixel Fixed Lens included

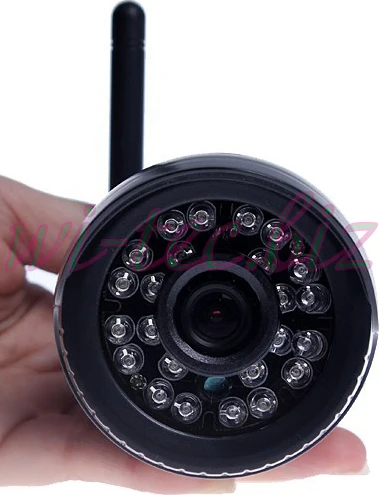

5) Built-in IR-CUT, auto-switch day and night, IR Range 20 m

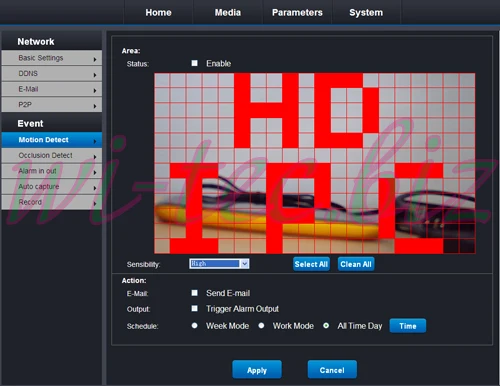

6) Motion detection recording and Alarm, FTP and email
7) Build-in Privacy Mask, image snapshot, Title OSD, SupportDDNS(No free DDNS)
8) Support RTSP Compatible with VLC Media Player
9) Onvif Compliant, Support NVR of Aevision/Milestone/Axxon/NUUO/geovision/synology/Hikvision/Dahua/Kodak
10) Support iPhone/iPad/Android Smart Phone

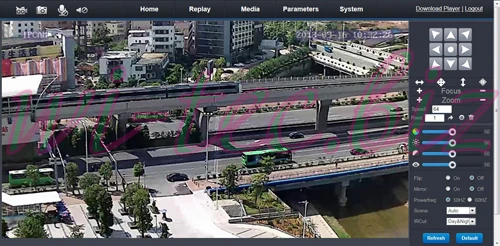

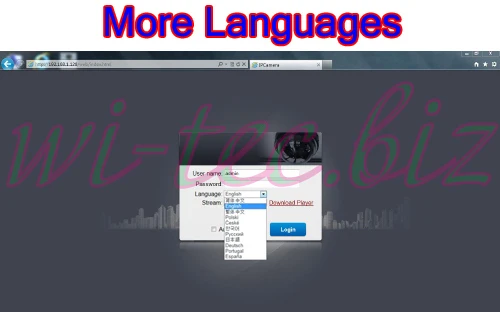

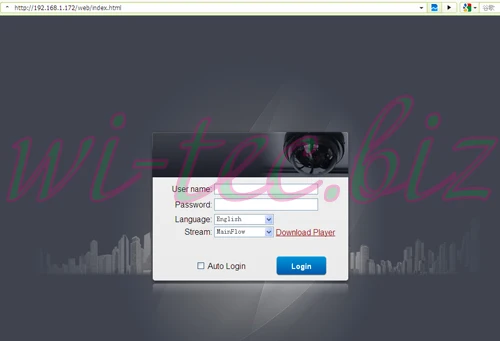

11) Support IE,Firefox, Safari,Google chrome browsers

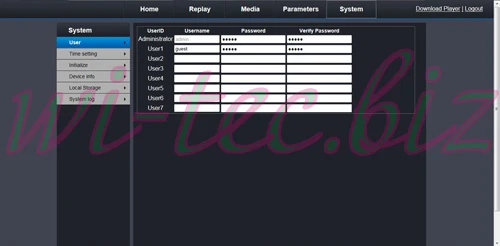

12) Support up to 10 users online simultaneously

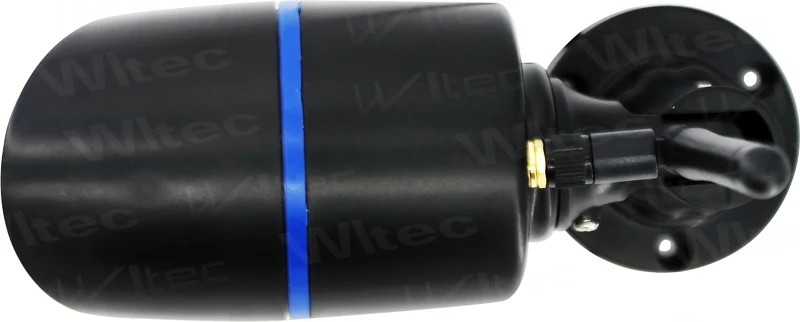

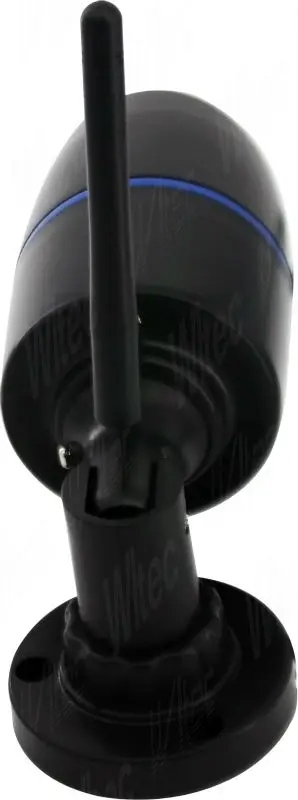

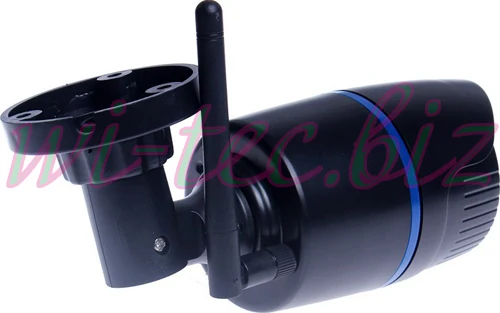

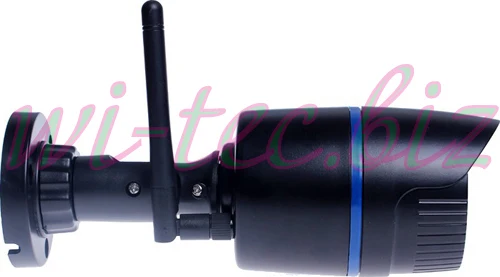

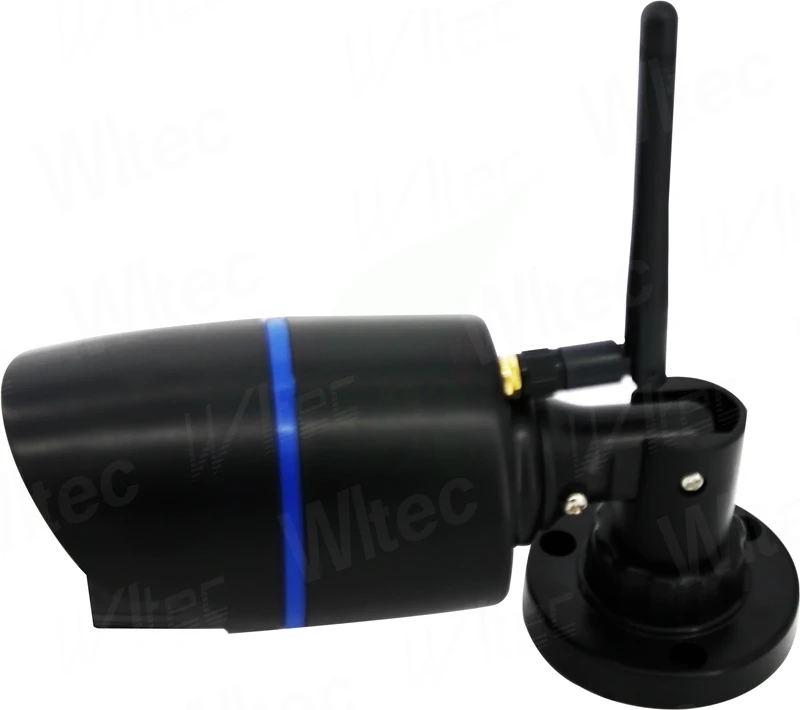

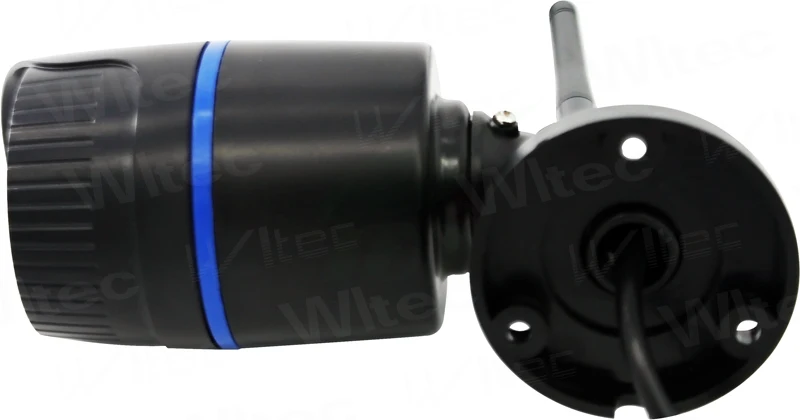

13) Plastic Housing, Outdoor Use
14) Free CMS Software, P2P
Model WI-1823BW Camera Image Sensor 1/4"ProgressiveScanCMOS OV9712 Effective Pixels 1280(H)x720(V) Scanning System Progressive Electronic Shutter Speed Auto/Manual, 1/3~1/10000s Min. Illumination Color: 0. 1Lux, B/W: 0.01Lux ; 0Lux(IR on) S/N Ratio >50dB Camera Features Max. IR LEDs Length Φ524pcs IRLed ,IRRange20m Day/Night Auto(ICR) / Color / B/W Backlight Compensation BLC White Balance Auto Gain Control Auto/Manual Motion Detect Support Privacy Masking Manual Lens Focal Length 3.6/6mm Max Aperture F1.6 Angle of View 69.9° Mount Type MTV mount(InterchangeableLens) Video Compression H.264 Frame Rate Main Stream HD720P(1280*720)25fps Sub Stream VGA 640*360 25FPS Bit Rate 32-4096Kbps,SupportsCBR/VBR Network Ethernet RJ-45 (10/100Base-T) Protocol TCP/IP , UDP , RTP , RTSP , RTCP , HTTP , DNS , DDNS , DHCP , NTP , PPPOE , SMTP , UPNP ONVIF ONVIF Ver. 2.0 Max. User Access 10 users Smart Phone iPhone, iPad, Android Wirelessprotocols(-W) 802.11b/g/n,150Mbps,SupportsWEP,WPA,WPA2 Auxiliary Interface Memory Slot N/A General Power Supply DC12V Power Consumption <6W Working Environment -10°C~+60°C, 10%~90% Ingress Protection N/A Dimension 165mm(L)*60mm(W)*60mm(H) Weight 0.35 KG PackageDimension 190 * 120 * 100mm PackageWeight 0.55KG Approvals CEFCCRoHS
1xIP Camera with 3.6mm Lens, If you want 6mm Lens, Please leave message.
1xCD Disk (User Manual and Software)
Some Screws for Installation
1.Please note: You should tell us what Signal System you need, PAL or NTSC? (Some products, we will provide Power supply. If so, Please inform us your local electric voltage and power plug demands, such as: US Plug, Euro Plug and UK Plug.) Otherwise our technicians will decide on their knowledge and experience. If wrong, your return won't be accepted.
2. Shipping worldwide from Shenzhen China by International Express, such as: UPS, DHL, EMS, FEDEX and China Post International service.
3. After considering to our customers' opinions, location and cost, We will choose the best express company. Estimated Time of Arrival is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season. Please allow 5-30 business days for delivery to any International destinations.
4. Only toADDRESS and PHONE NUMBER you left at payment.Please check your shipping address carefully before checkout, it can't be changed if order completed.Your mobile phone number is appreciated.
5.Warranty covers replacement or repair in Two years.
6. If you are dissatisfied for any reason, please do not be quick to leave negative/neutral feedback. We work hard to make sureEVERY CUSTOMER 100% SATISFIEDand resolve any problem for you and always leave positive feedback to all our customers.
- Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.
- Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.
- The buyer don’t do customs clearance or the Customs can't contact the buyer, we have rightto consider that the buyer have received the parcel.
- Refunds given only if item DOA and can’t be replaced. If so, Please report within5 daysand return to us within30 daysfrom the delivery date for exchange or refund.Pleasedo note we are not responsible if problem exceed of this time limit.
