Pictures and more details of Z.VST.3463.A Support DVB-C DVB-T DVB-T2 instead of T.RT2957V07 Universal LCD TV Controller Driver Board Better than V56
This model is universal Controller Z.VST.3463.A1 gives the opportunity to build on the base of the laptop or monitor matrix full multimedia TV c T-2 tuner on board without depriving themselves of the opportunity of using it as a monitor.
Controller Z.VST.3463.A1 has on board analog-to-digital Touraine Rafael R842 with support for T-2, DVB-T, DVB-C, ATV, by just saying support for more digital signal cable, teletext and radio TV. As main chip has allowed not only to exploit the full potential of the TV chip, but not deprived of the possibility of reproducing a photo, video, audio files from a USB drive. All the innovations introduced in this model is made possible by the use of a more powerful master chip from the company Mstar MDS3463GU-Z1
Suitable for Europe, Africa, The five Central Asian countries, the Middle East, Russia, Thailand, Myanmar, Kenya, Portugal, Malta, Uganda and other countries or regions.
Support Digital Signal
Controller chip: MDS3463GU-Z1
TV tuner chip: Rafael R842
flash memory: 25Q64CSIG
PowerInput: DC 12V 4A
Chip Audio: CS37AD2AB
Audio output power: 2x8W
Consumption:operating mode -> = 6W
simple - <0.3W
Video input: TV: DVB-T / T2, DVB-C, ANALOG TV (ATV)

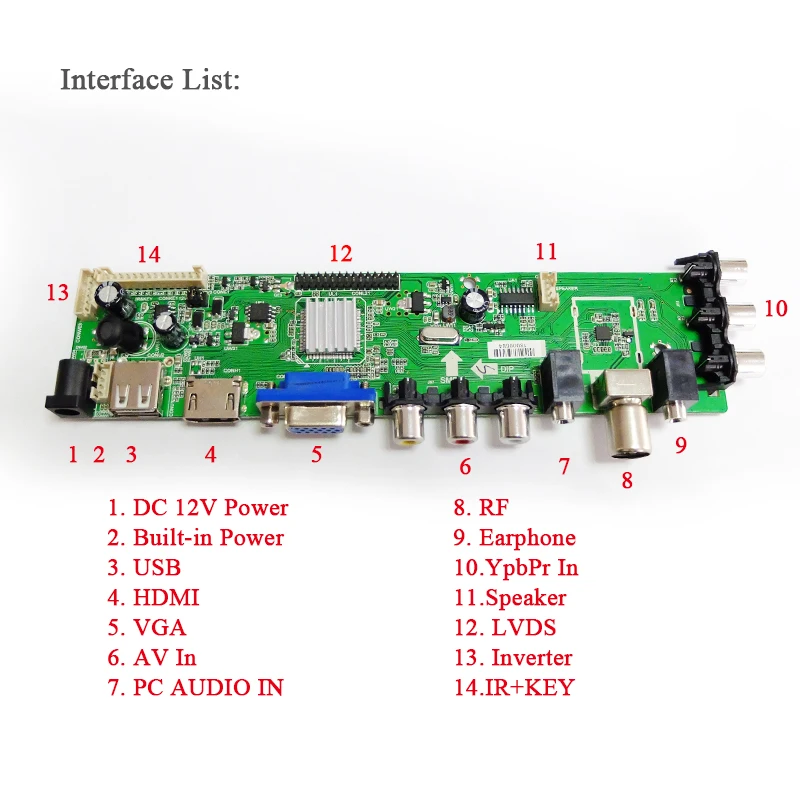

Additional inputs outputs: audio mini jack 3.5mm USB
Z.VST.3463.A’ s USB slot can be used for updating software and playing multimedia, such as MP3 andJPEG.
How to know if your panel suitable for this board?
Step 2: check with below if your resolution is included.
1024 X 786 6 bit 1 channel
1024 X 786 8-bit 1 channel
1280 X 1024 8-bit 2channel
1366 X 768 6-bit 1 channel
1366 X 768 8-bit 1 channel
1440 X 900 8 bit 2 channel
1600 X 1200 6-bit 2 channel
1680 X 1050 8-bit 2channel
1920 X 1080 8-bit 2channel
1920 X 1080 6-bit 2 channel
Step of USB upgrade :
1.Put the firmware of "3463GU_A.bin" in formatted USB flash disk ,then insert the USB disk and the 7KEY-Button to the board
2.After turn on the power ,the light of the 7key button will be Red then flash red and blue.after about 1 minute, the light stop flashing ,it means upgrade has finished.(Note that write programs do not power outages, crashing won't be able to use)
How to into Factory setting?
Press"Input" button then press"2 5 8 0"
1 x Z.VST.3463.A1Control board
1 x Remote Control (English Keypad)
1 x IR
NOT INCLUDE LVDS CABLE
If you need DC 12v 4A power supply,Click here to buy
If you need aLCD Panel Speaker Amplifier,Clickhere to buy
If you need Baffle Stand,Click here to buy

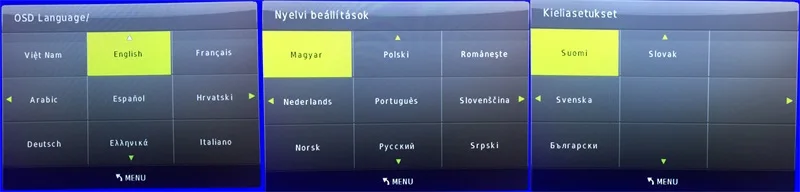

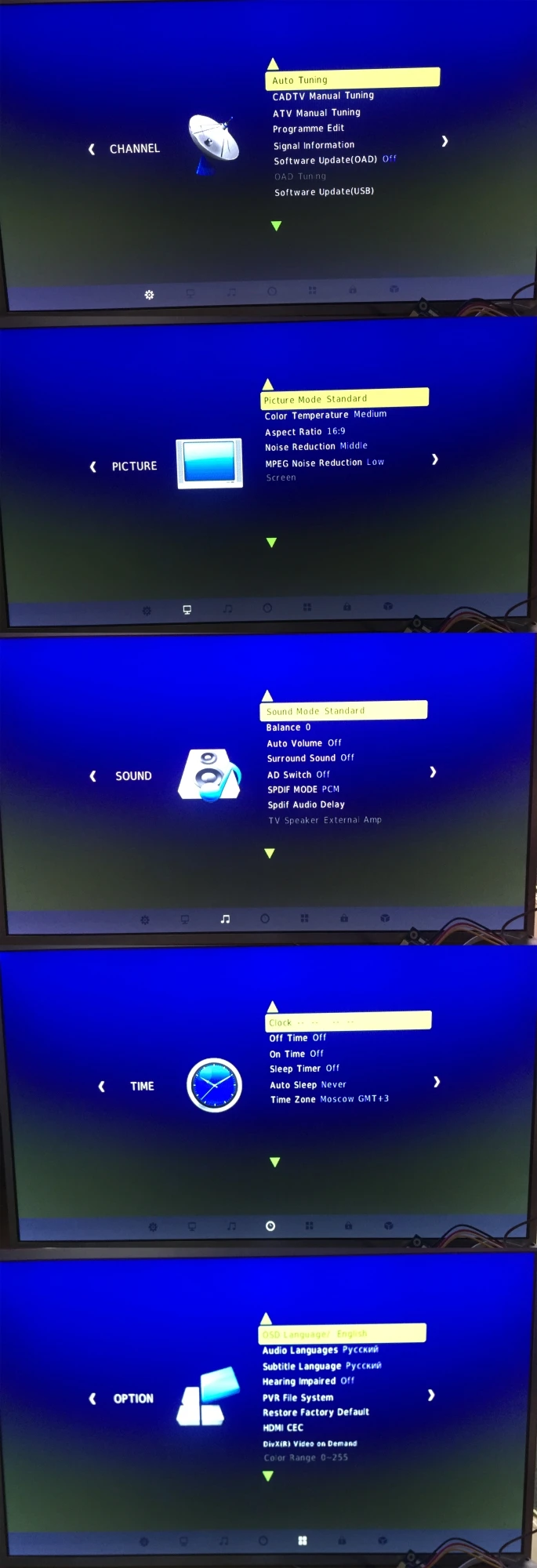

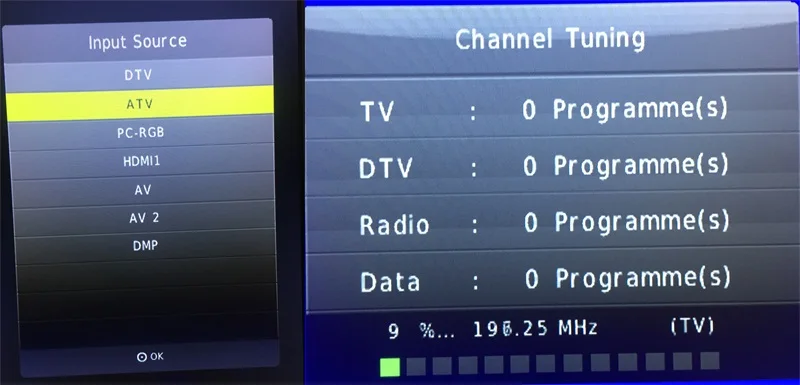

Playing Video via USB port

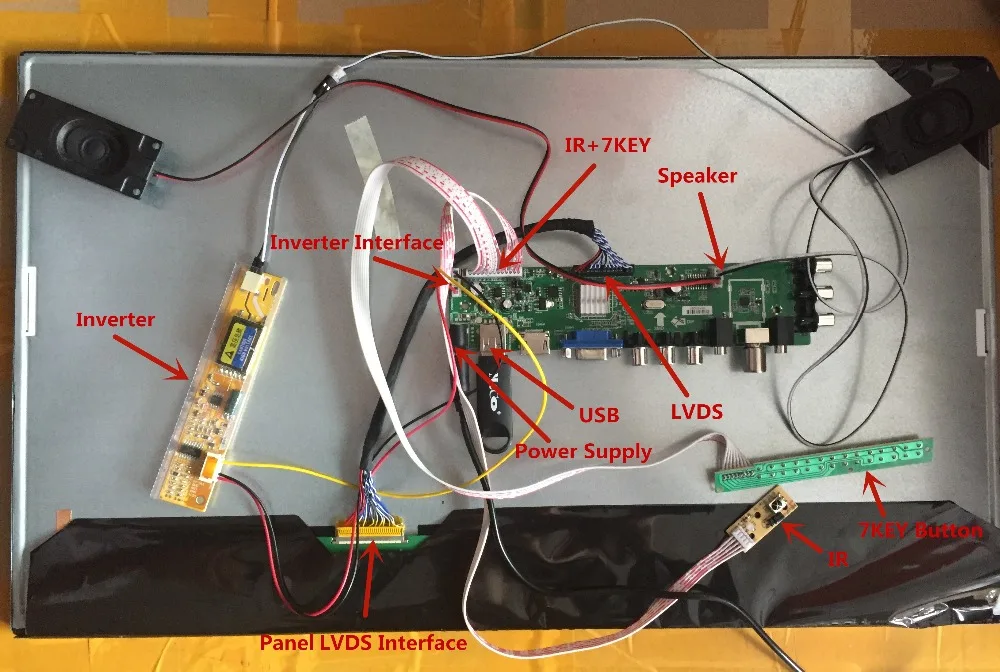

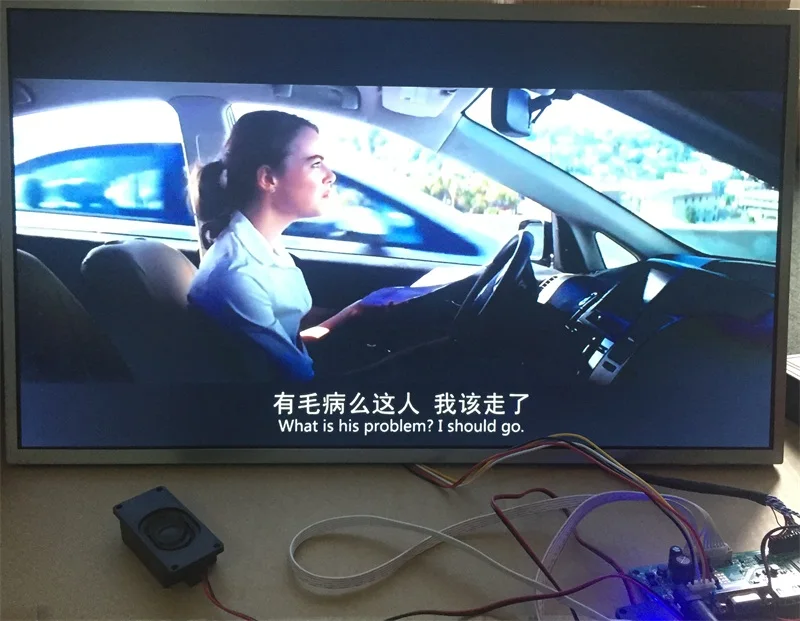

Connection as photo ,Just for Reference
If your panel embedded backlight driver, you don't need to connect a inverter
